Thread Rolling Wheel Die

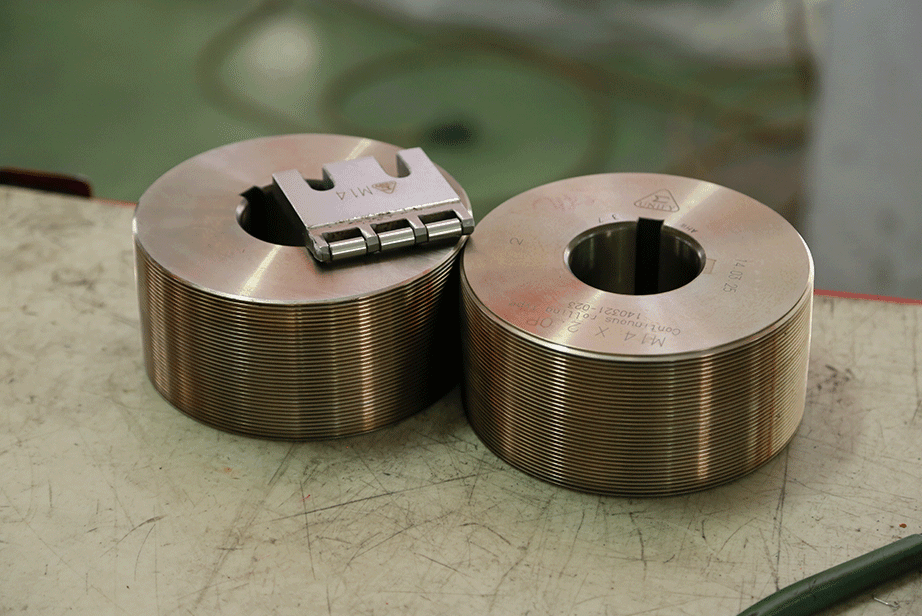

Thread Rolling Wheel Dies (Circular Dies) are used in planetary and cylindrical die thread rolling machines for high-speed thread formation. CYC supplies wheel dies for all standard thread types, providing superior surface finish and increased production speed compared to flat die systems.
Download Catalog (PDF)Thread Roller Type

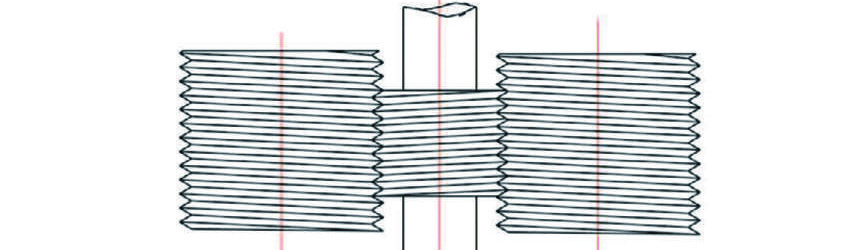

In-feed / Plunge Type
The thread rolling length is shorter than the length of thread rolling die

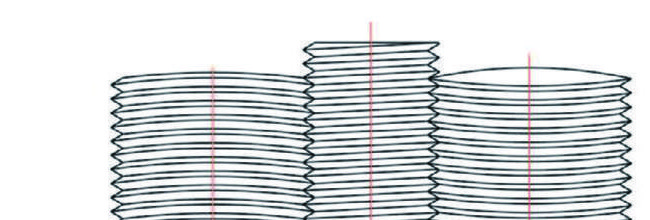

Thru-Feed Type
The thread rolling length is longer than the length of thread rolling die
Annular ring type, Continuous rolling type, Helical slow feed type, Speed-up type
Manufacturing Thread Rolling Die Range
| Outside diameter | Max 300mm | Pitch | 0.4 - 10.0 P(60 - 2 ½TPI) |
| Length | Max 400mm | Module | 0.2 - 2.0 |
| Pressure angle | 10° - 45° | Helix angle | ± 45° |
