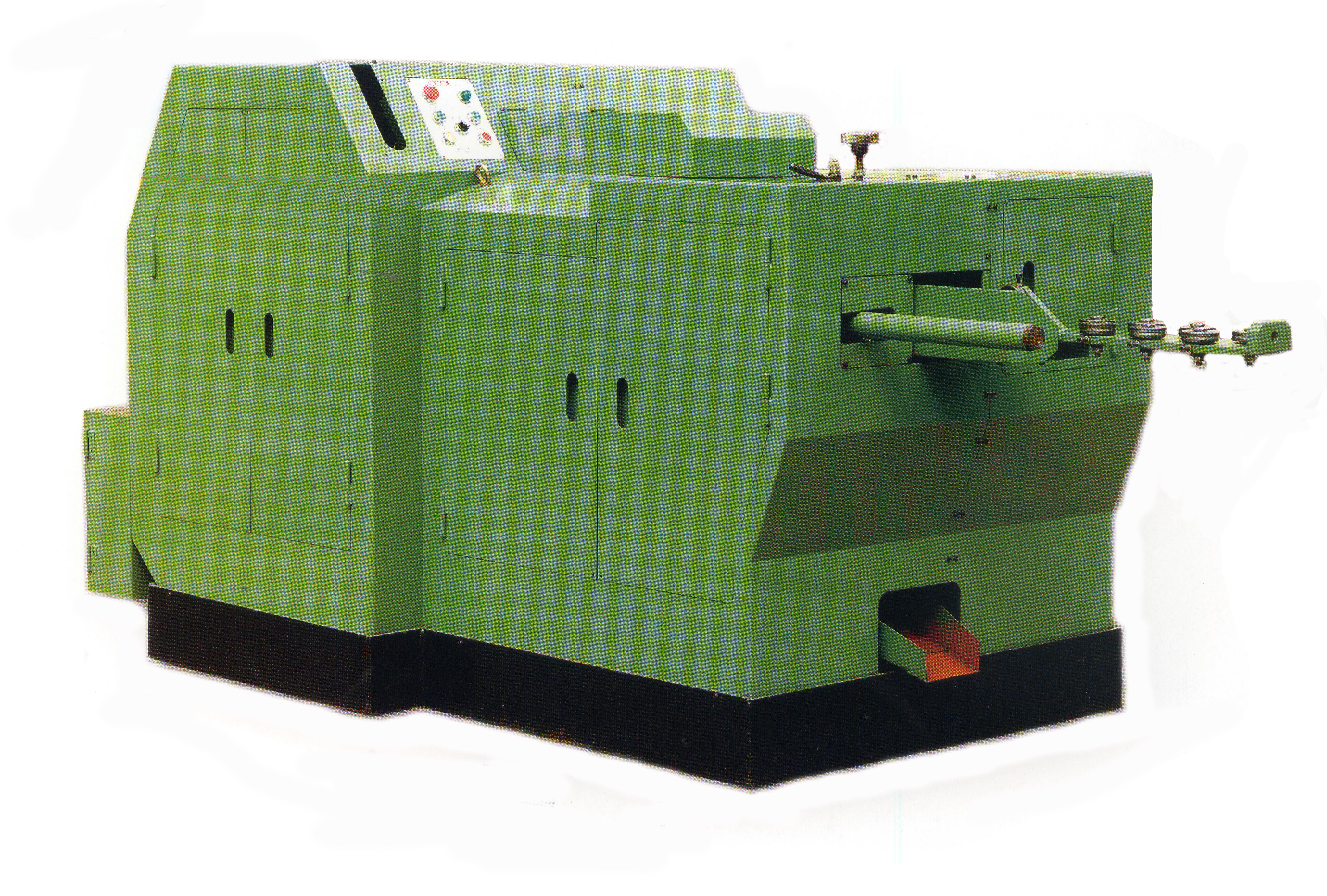

1 Die 2 Blow Heading Machine

1 Die 2 Blow Heading Machine is used to produce screw in the fastener field. The advantages of these Machines from Taiwan are the product performance, production speed, machine life time and the reasonable price. The process is to feed the wire, cut the wire and form the screw head shape by a series of tools and dies.

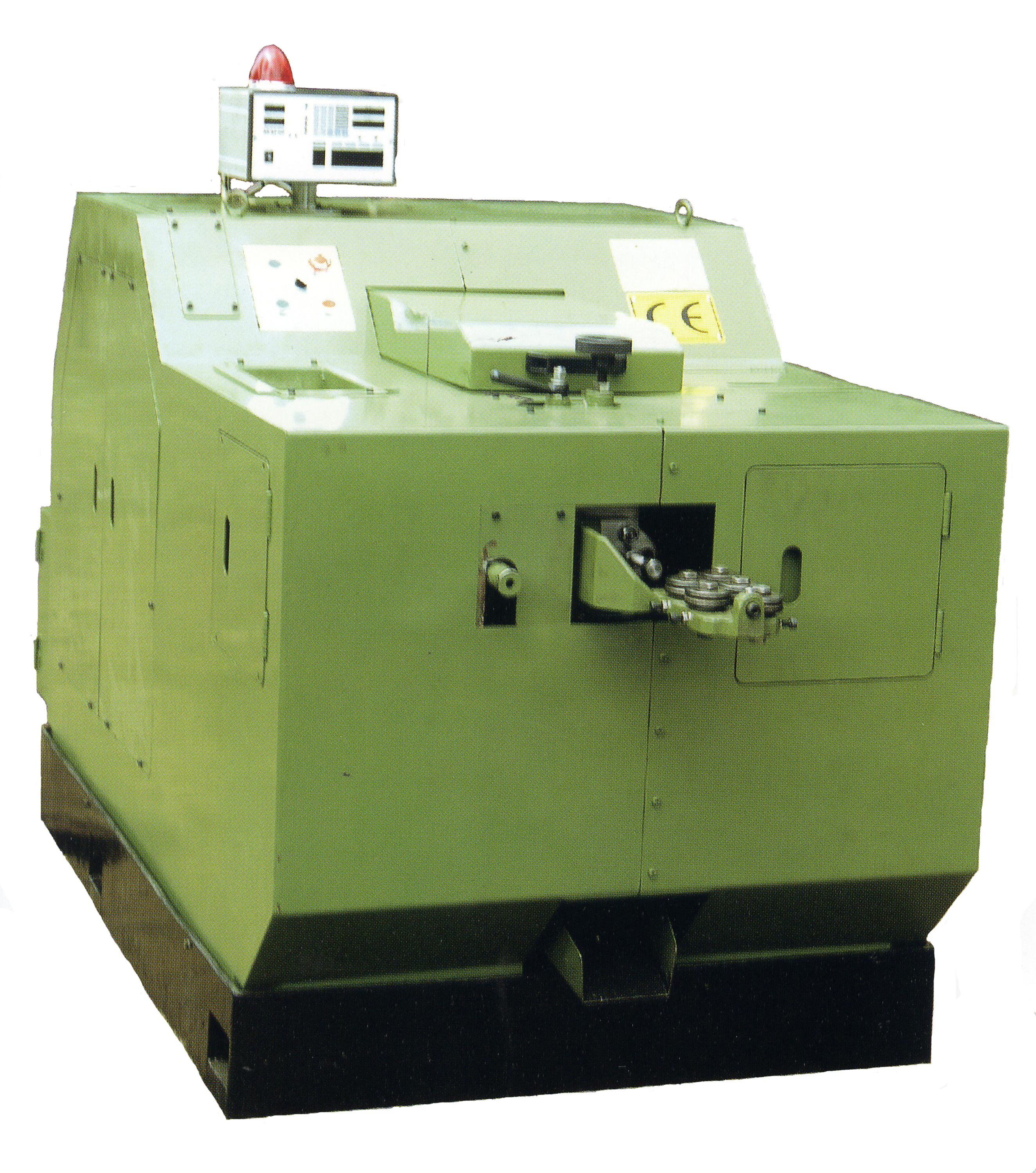

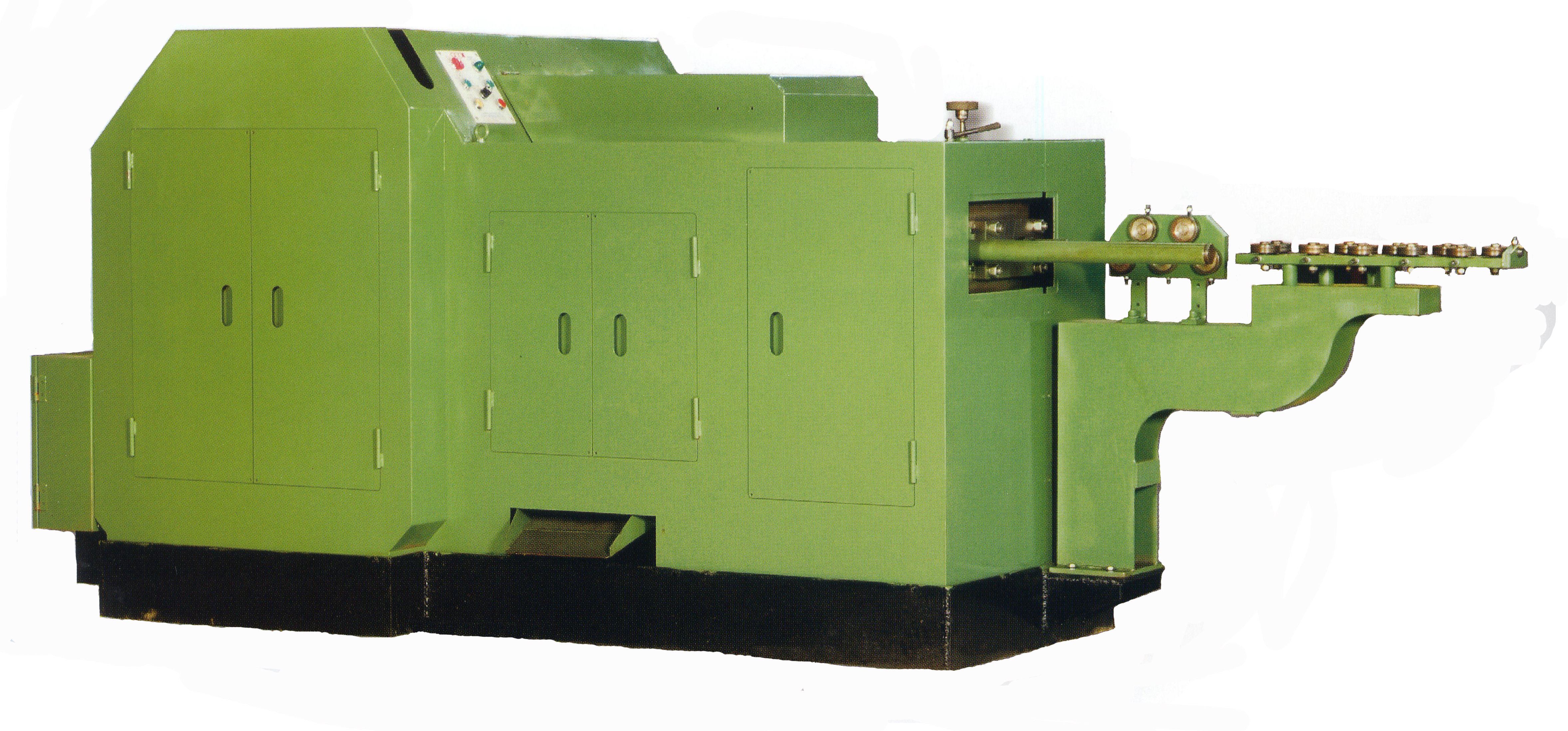

<Heading Machine Presented by CYC>

U Queen
Ding Tai Heading Machine
YIH TIENG MACHINERY INDUSTRIAL CO.,LTD

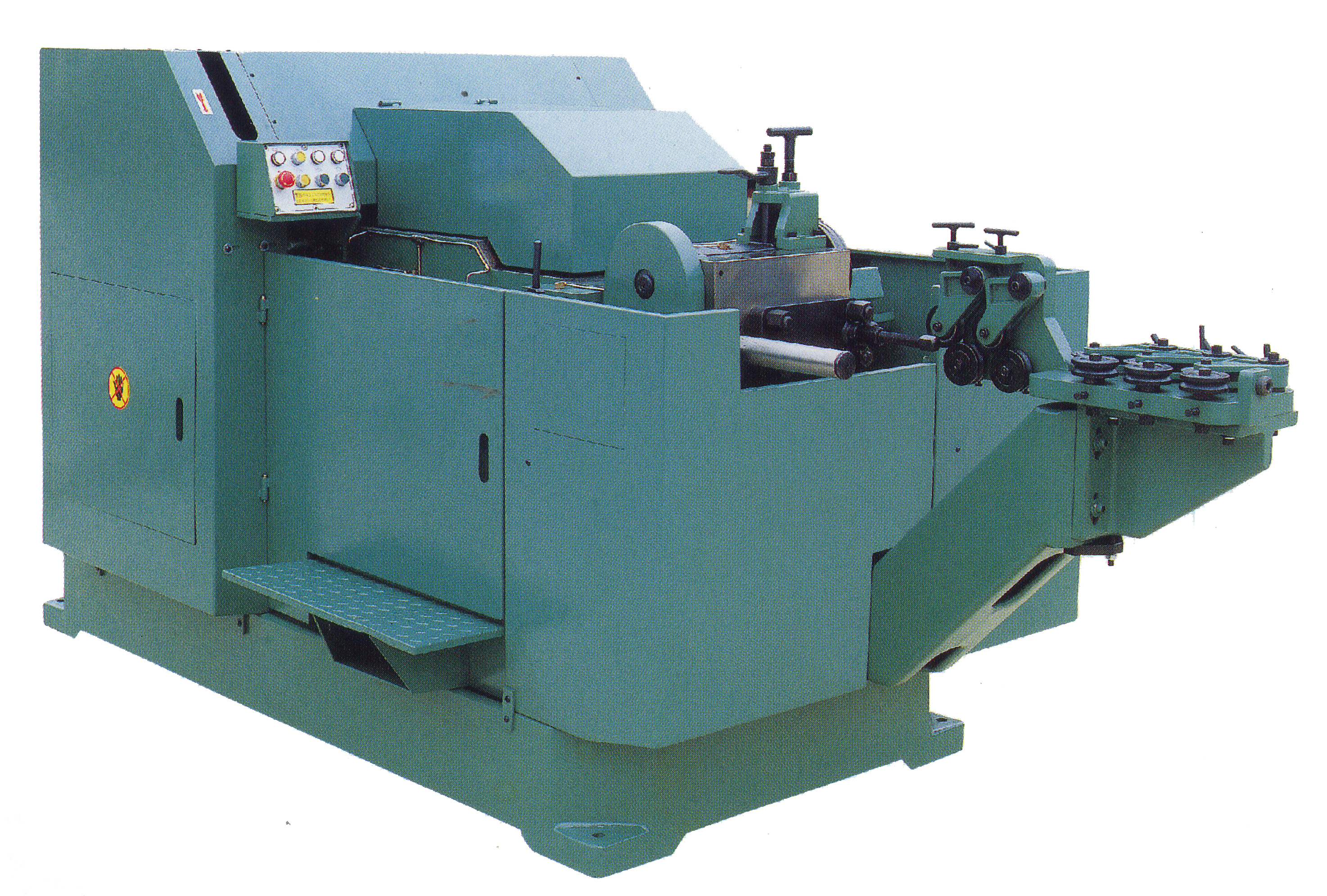

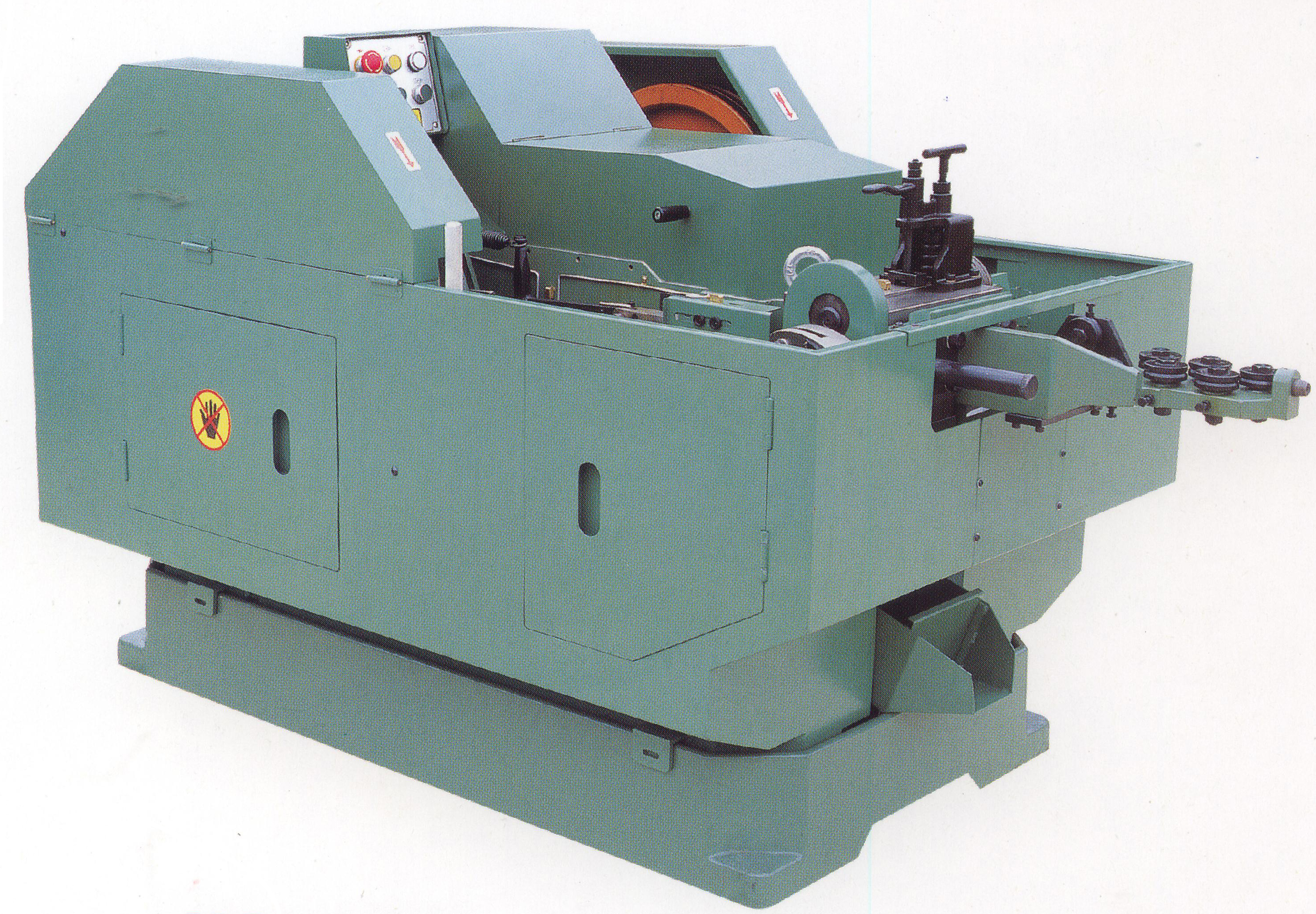

HC Heading Machine

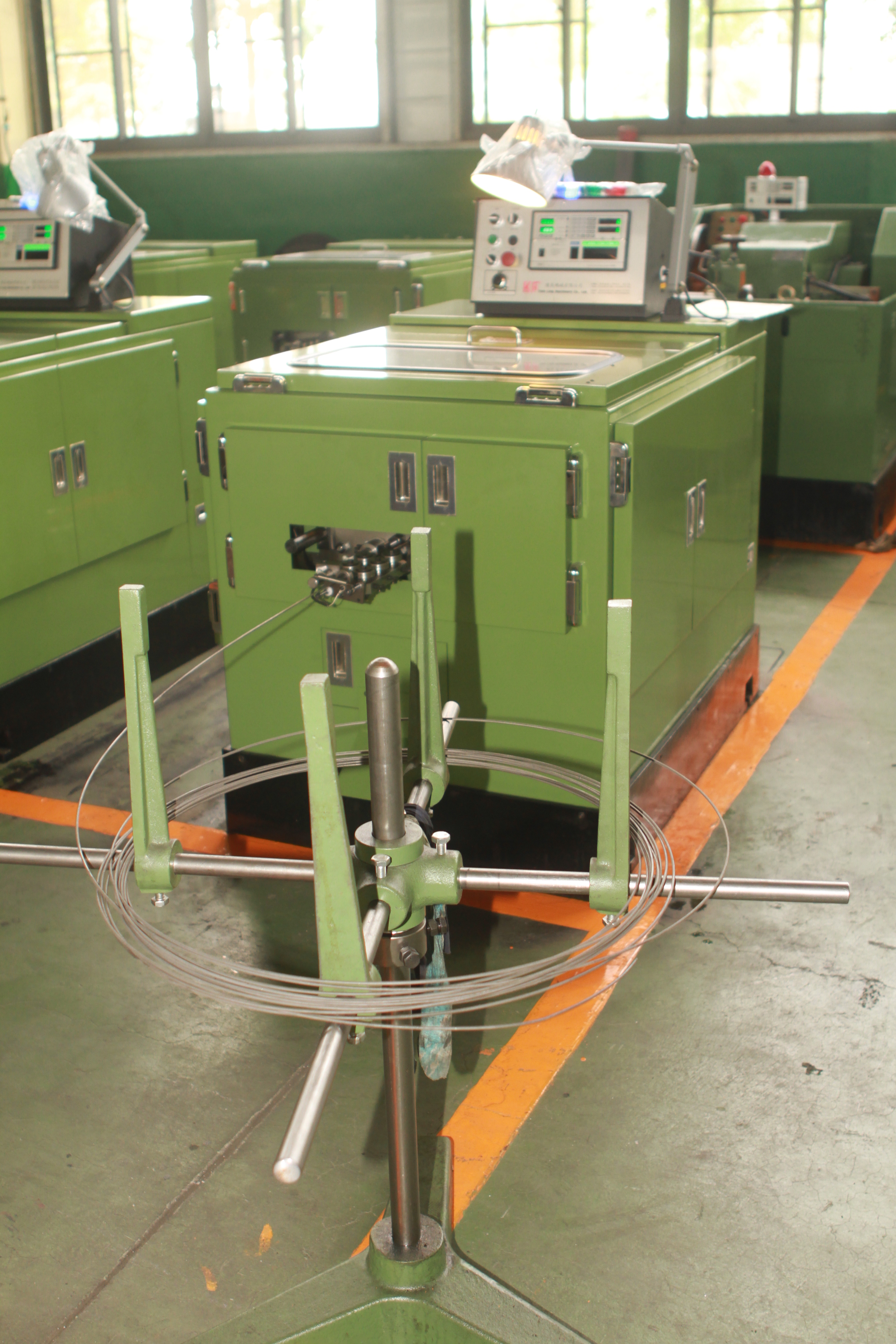

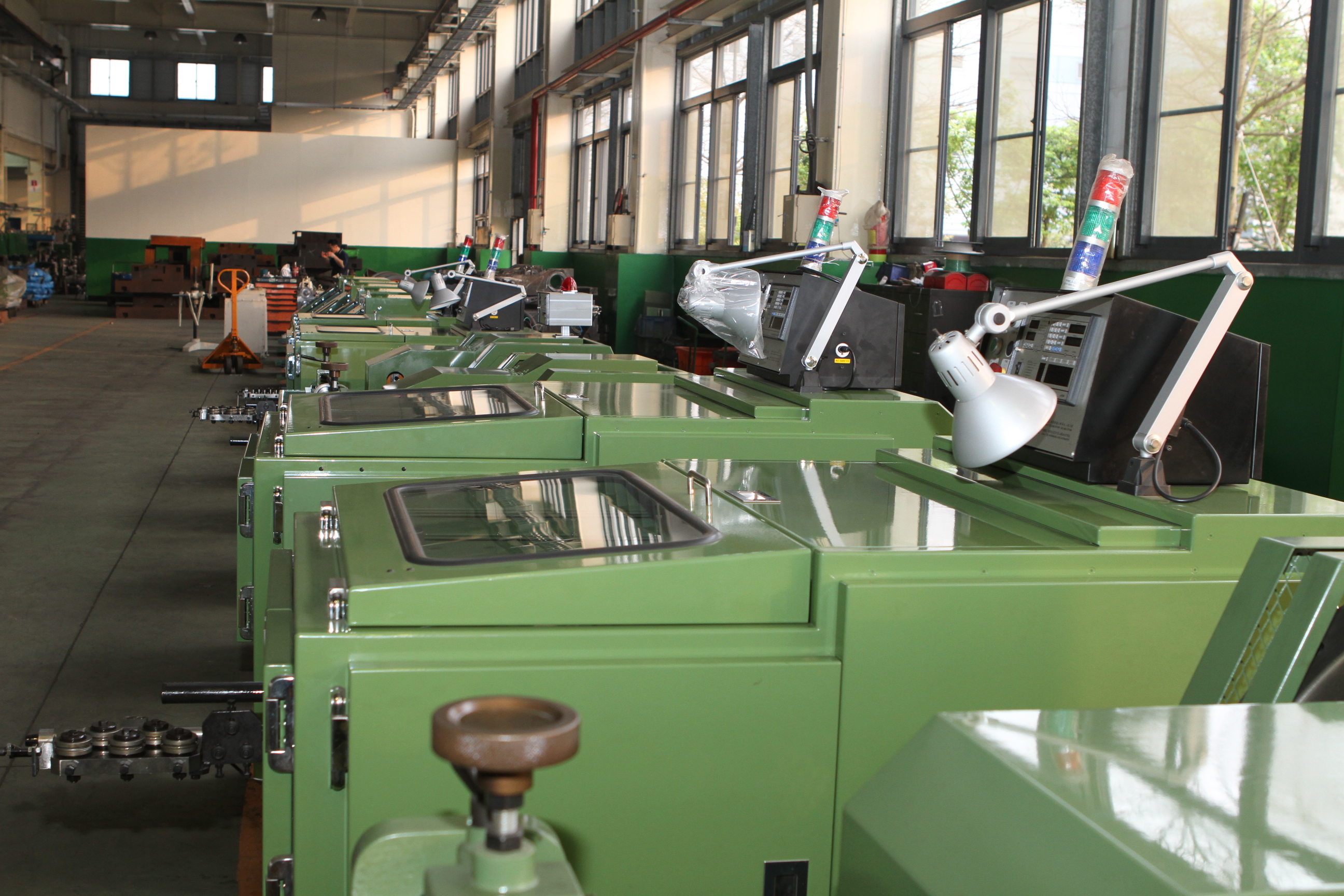

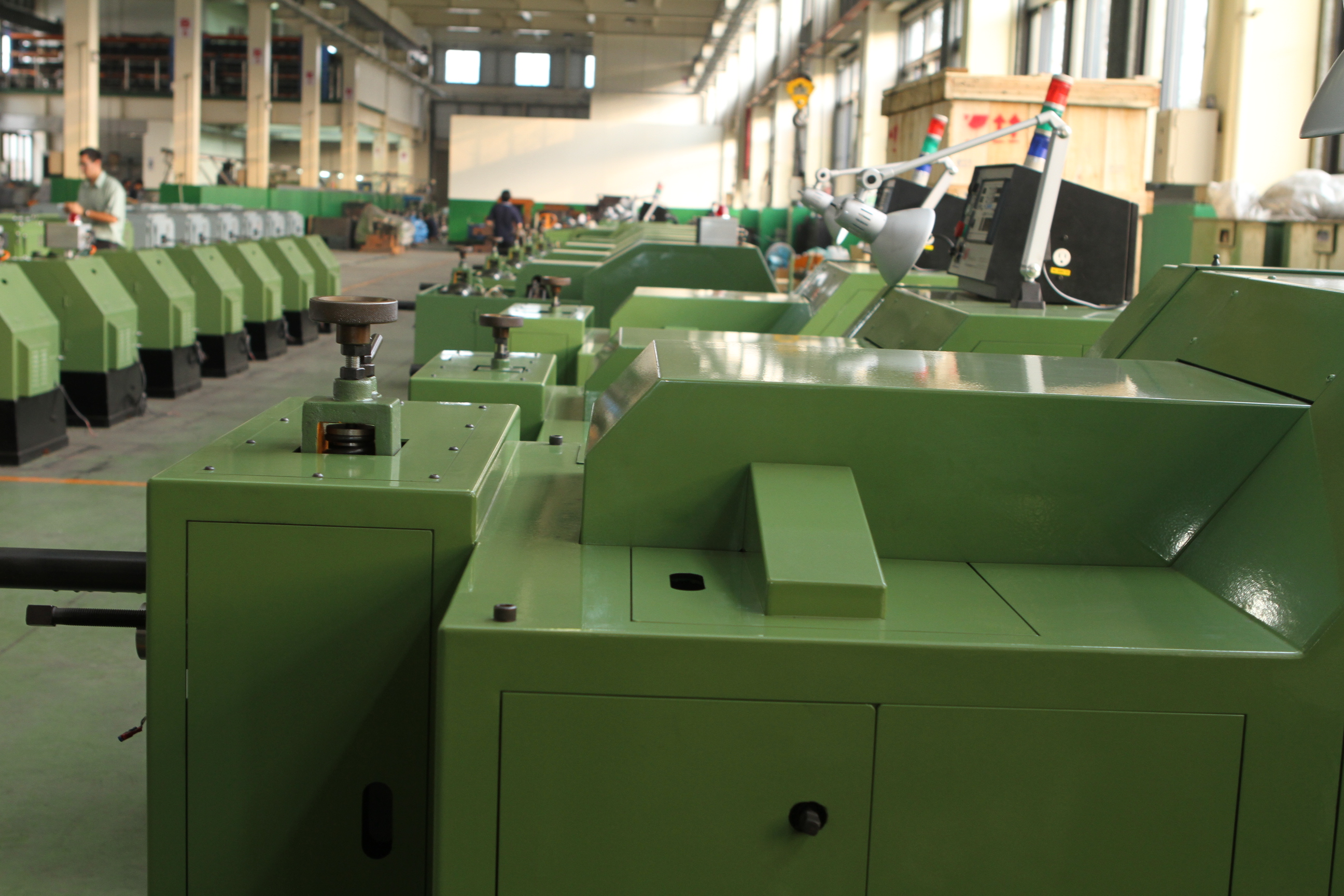

Guo Ling Heading Machine
Cold Header
TS Heading Machine
YH Heading Machine

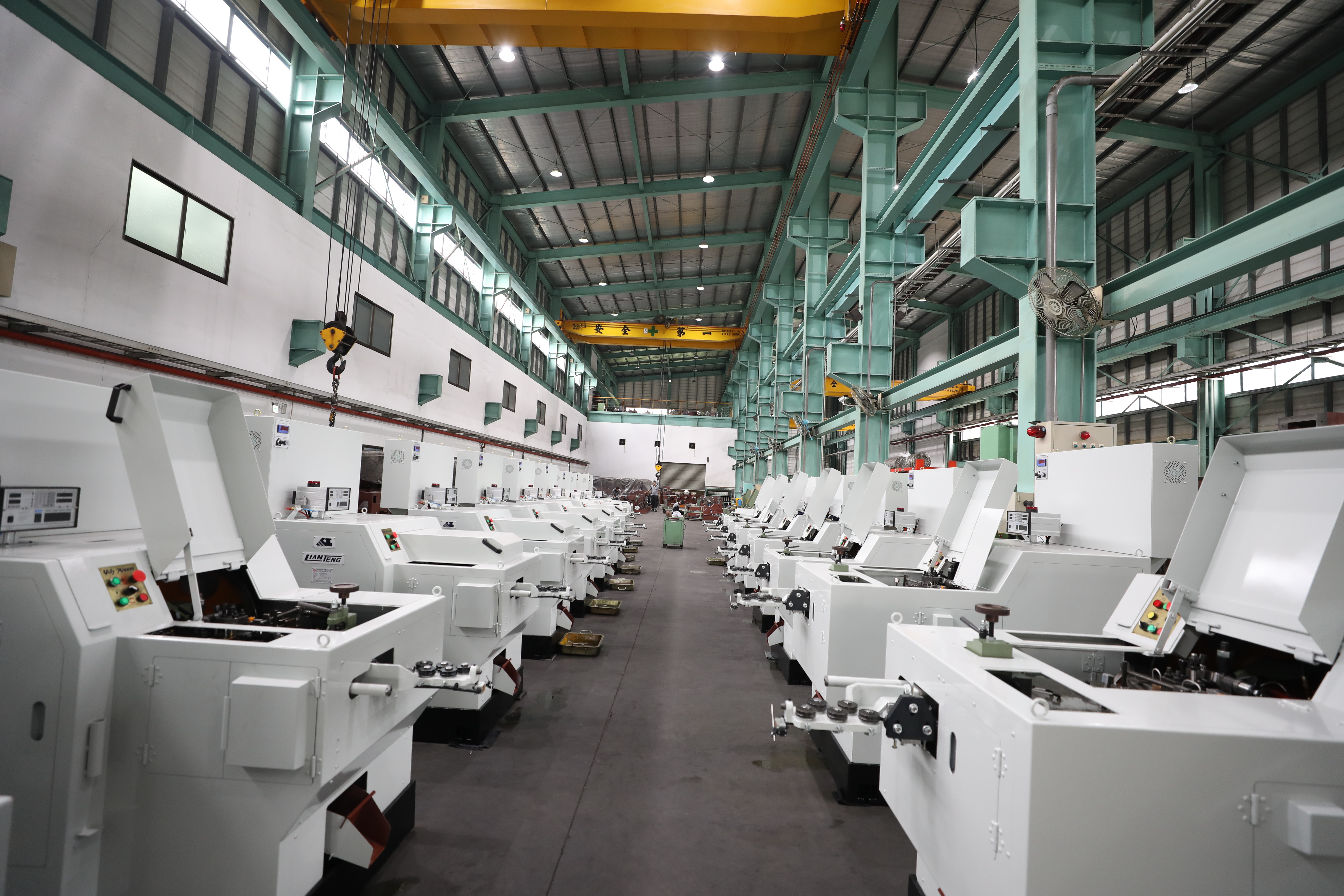

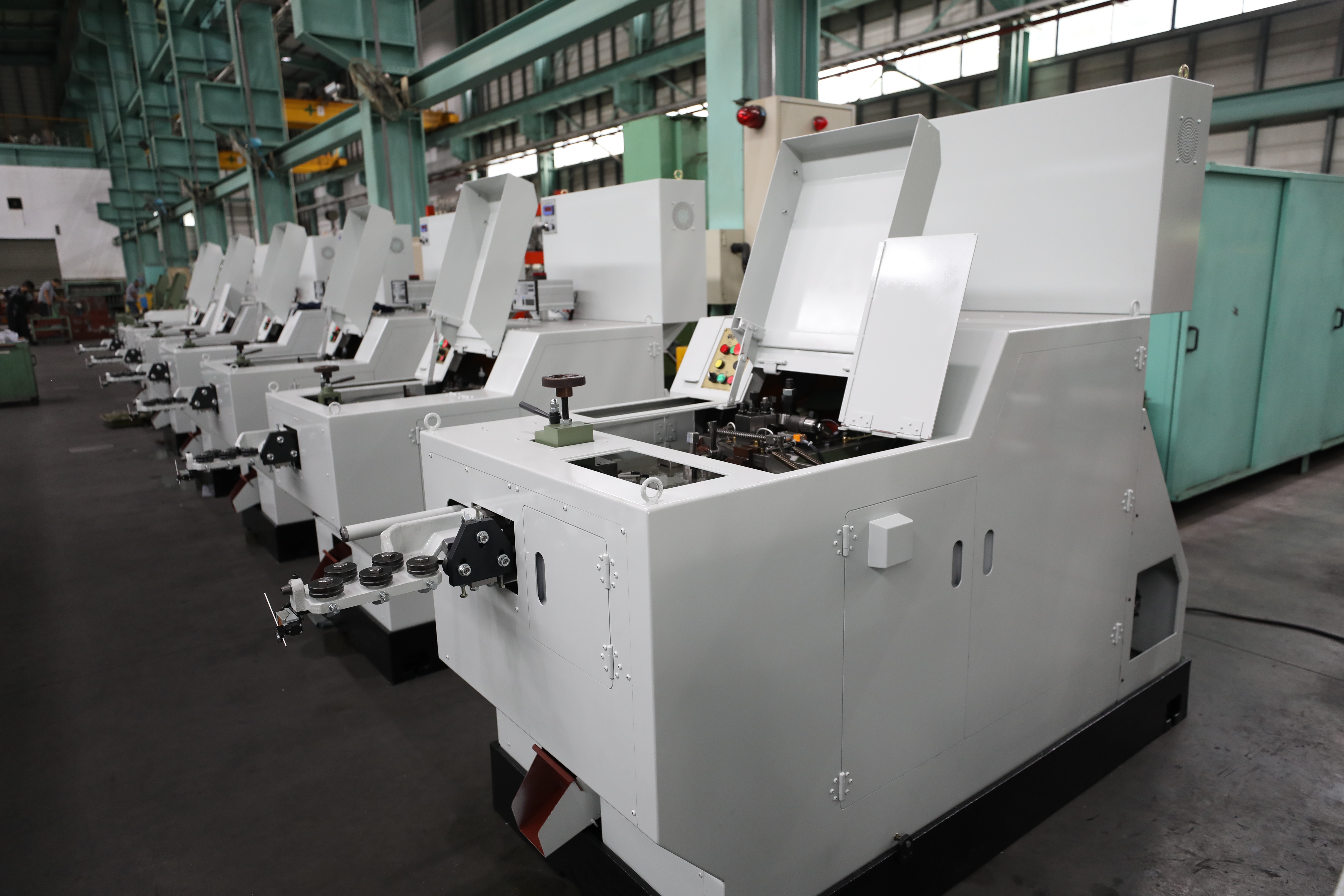

LT Heading Machine

<1 Die 2 Blow Heading Machine Specification>

Following Heading Machine Specification is only for your reference. For more information, please kindly download our catalog.

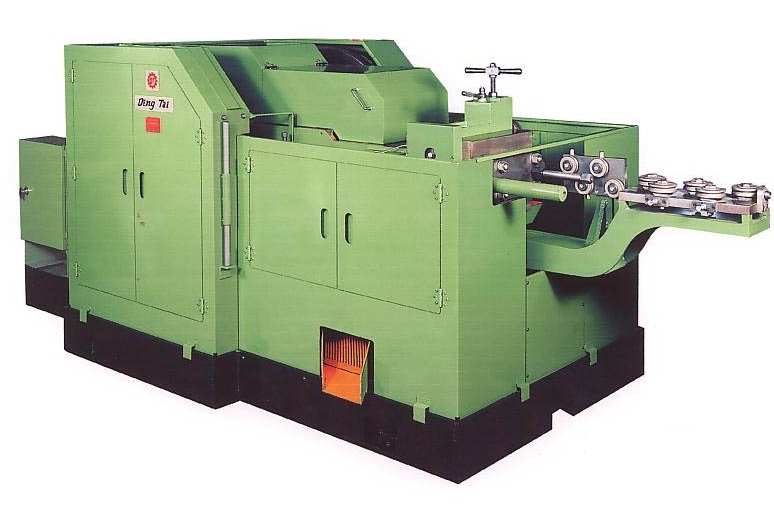

1 Die 2 Blow Heading Machine (Semi-Cover)

Model Max.Blank Ø(mm) Max. Blank Length (mm) Stroke (mm) Production Rate (pcs/min) MainDie Ø (mm) Cut-Off Ø (mm) 1st Punch (mm) 2nd Punch (mm) Motor (hp) Oil Pump (hp) Machine Dimensions (L x W x H) (cm) NetWeight (kgs)
FA-5S 0.8-2 24 38 170-200 20 13.5 18 18 1 1/4 150x95x110 820
FA-5.5S 2-3.5 28 46 200-250 25 13.5 18 18 1 1/4 160x100x110 980
FA-10S 2-4 43 58 190-22- 30 15 24 20 2 1/4 165x105x120 1050
FA-15S 4-5 64 92 150-180 34.5 19 31 31 2 1/4 210x125x132 1750
FA-15SL 4-5 76 110 110-130 34.5 19 31 31 2 1/4 210x125x132 1860
FA-20S 4-6 76 124 90-110 45 25 36 36 3 1/4 240x145x150 2645
FA-20SL 4-6 102 160 80-100 45 25 38 38 3 1/4 270x150x150 3110
FA-25SL 4-8 152 220 50-70 60 32 45 45 10 1/2 410x168x165 5650

YH High Speed Heading Machine

Model Max.Blank Ø (mm) Max. Blank Length (mm) Stroke (mm) Production Rate (pcs/min) Die Ø (mm) Cut-Off Ø (mm) 1st Punch (mm) 2nd Punch (mm) Motor (hp) Oil Pump (hp) Machine Dimensions (L x W x H) (cm) Weight (kgs)
YH-1030 3 30 56 180-200 30 15 24 20 2 1/4 145x88x105 1000
YH-1538 5 38 66 160-180 34.5 19 31 31 3 1/4 179x102x109 1600
YH-1552 5 53 80 160-180 34.5 19 31 31 3 1/4 179x102x109 1600
YH-1564 5 64 92 130-160 34.5 19 31 31 3 1/4 179x102x109 1600
YH-1576 5 76 120 100 40 19 31 31 3 1/4 200x105x110 1800
YH-15100 5 100 160 80 40 19 31 31 5 1/4 271x106x121 2300
YH-2076 6 76 120 100 42.8 25 36 36 5 1/4 245x107x116 2200
YH-20102 6 102 146 90 45 25 36 36 7-1/2 1/4 305.8x130x127 3600
YH-20125 6 125 190 70 45 25 36 36 7-1/2 1/4 346x111.5x144 4000
YH-20165 6 165 214 62 60 25 38 38 7-1/2 1/4 365x146x145 4100
YH-20200 6 200 254 50 60 25 38 38 7-1/2 1/4 400x127x145 4800
YH-20250 6 250 288 42 60 25 38 38 7-1/2 1/4 480x136x145 5600

ZH High Speed Heading Machine

Model Max.Blank Ø (mm) Max. Blank Length (mm) Stroke (mm) Production Rate (pcs/min) Die Ø (mm) Cut-Off Ø (mm) 1st Punch (mm) 2nd Punch (mm) Motor (hp) Oil Pump (hp) Machine Dimensions (L x W x H) (cm) Weight (kgs)
ZH2550 8 50 110 130 60 28 38 38 7-1/2 1/4 260x144x131 4500
ZH25102 8 102 160 68 60 28 38 38 7-1/2 1/4 349x161x150 4800
ZH25152 8 152 220 72 60 28 38 38 10 1/4 405x155x138 5300
ZH25200 8 220 290 40 60 28 38 38 10 1/4 481.3x153x159 7600
ZH25305 8 305 370 40 60 30 41 48 10 1/2 482x167x144 8000
ZH3076 10 76 140 70 80 40 50 50 15 1/2 388x172x145 7500
ZH30152 10 152 230 62 80 40 50 50 20 1/2 452.5x195x174.5 8100
ZH30200 10 200 280 49 80 40 54 50 20 1/2 493x180x155 10400
ZH30320 10 320 420 29 80 40 50 50 20 1/2 671x199.5x178 12700
ZH30400 10 400 480 25 80 40 60 50 20 1/2 710x210x180 14100
ZH40100 13 100 168 70 93 46 60 60 25 1/2 436x182x158 9900
ZH40200 13 200 290 50 98 48 68 68 25 1/2 567x190x170 14000
ZH40300 13 300 400 30 98 48 68 68 30 1/2 721.6x204x182 13400
ZH40350 13 350 440 30 98 48 68 68 30 1/2 850.5x216x191 15400
ZH40450 13 450 540 24 98 48 68 68 30 1/2 890x226x220 18900
ZH50100 16 100 230 55 110 56 74 74 40 1/2 613x220x213 16500
ZH50250 16 250 380 40 110 56 74 74 40 1/2 782x225x220 20000
ZH60200 20 200 290 36 135 65 85 80 50 1/2 730x244x212 21000
ZH60300 20 300 420 28 135 65 85 80 50 1/2 776.5x245x230 24310
ZH60420 20 420 500 31 148 65 82 82 50 1/2 874x250.4x225 28000
ZH70250 22 250 360 40 140 75 95 95 75 1/2 830x250x220 30100
ZH70320 22 320 440 30 152 80 95 95 75 1/2 870x261x230 33200
ZH70420 22 420 540 25 152 80 95 95 75 1/2 985.4x281x240.2 34500
ZH80330 26 330 444 30 168 98 108 95 75 1/2 890x275x235 35000

1 Die 2 Blow Micro Precision Heading Machine – Fingerless transfer

Model Wire Ø (mm) Cut-Off Length (mm) KO. Length (mm) Output (Free Run) (pc/min) Main Stroke (mm) Up/Down Stroke (mm) 2nd P.K.O. Stroke (mm)
HUI05 0.5-2.2 2-14 14 80-220 36 26 6/9
HUI10 1.6-3.5 3-25 16 80-220 60 32 6/9
UI15 2.2-4.5 3-35 25 80-150 92 40 12
UI20 2.6-5.3 5-40 30 80-120 120 45 12
Model Main Motor (hp) Main Die Ø (mm) Punch Ø (mm) Quill / Pusher Ø (mm) Cutter Ø (H x W x L) (mm) Overall Size (L x W x H) (cm) Net Weight (kgs)
HUI05 2HP-4P 30x35.3L 18x50L 12/14 6x20x58 210x120x175 1000
HUI10 3HP-4P 38x50.3L 22/18x65L 15/15 8x24x76 225x120x180 1350
UI15 5HP-4P 38x80.5L 31x75L 17/15 9x32x75 225x125x185 1650
UI20 5HP-6P 42x100.5L 36X93L 22/15 10x38x83 250x155x185 2200
