Nut Forming Machine

Nut Forming Machine usually produce the screw nuts with the cold forming procedure. The choice of the station number depends on the size and the category of the product. The steps are straightening the wire, cutting off the wire, making nut blank, and then you will need another machine called nut threading machine to thread the inner part of your nut.

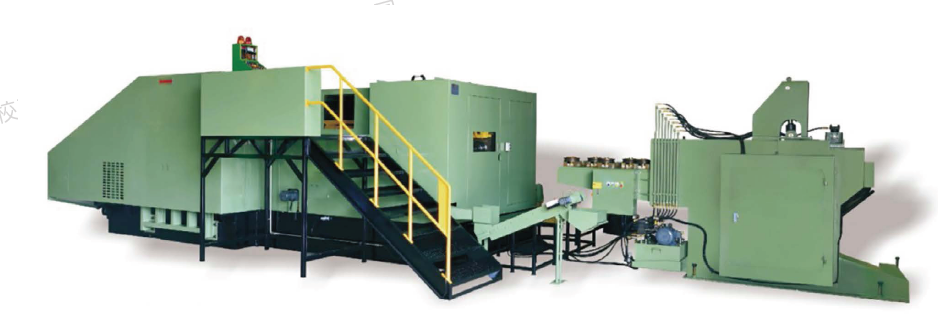

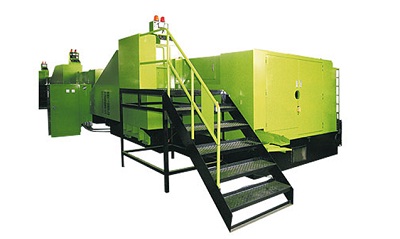

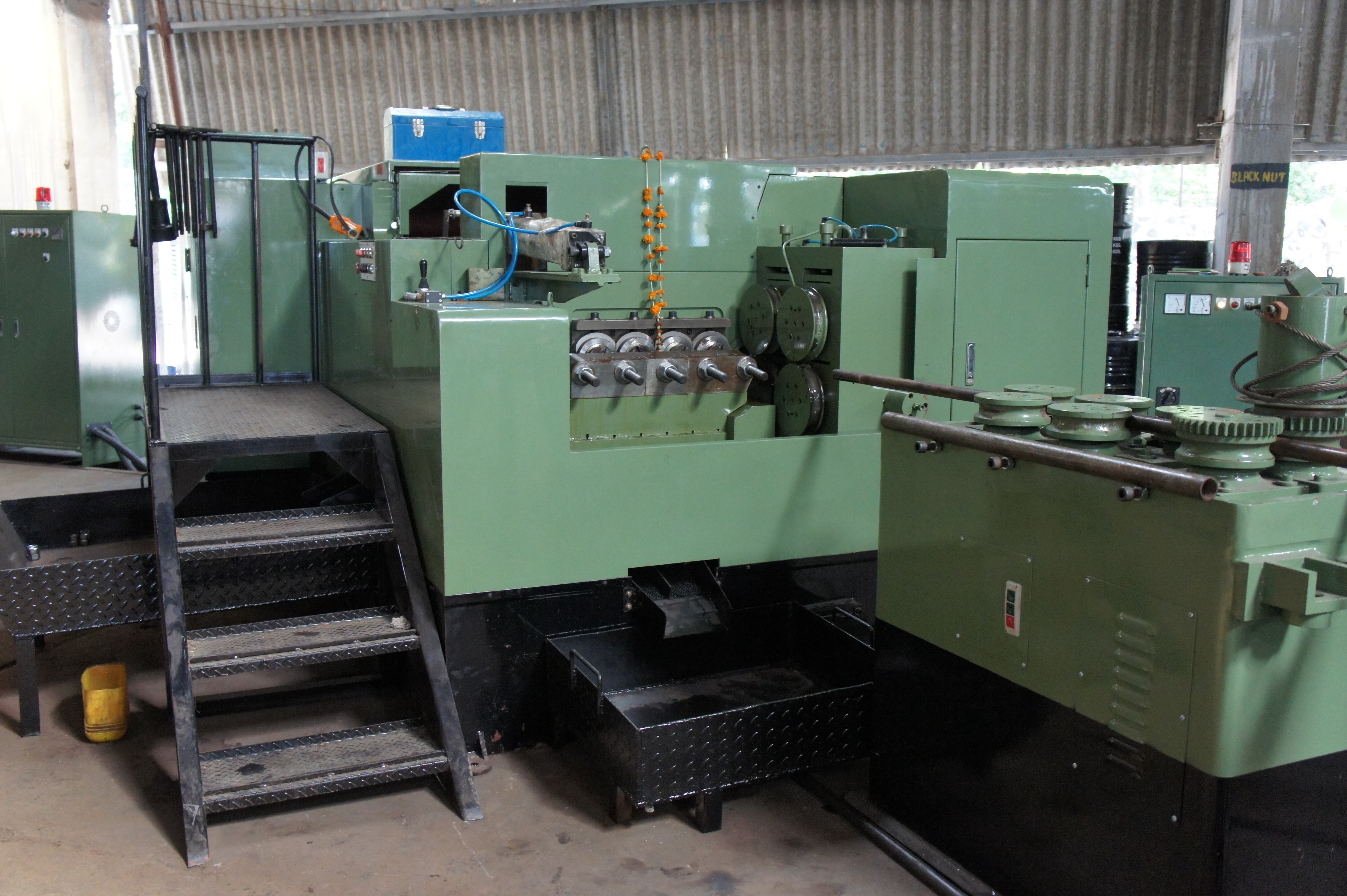

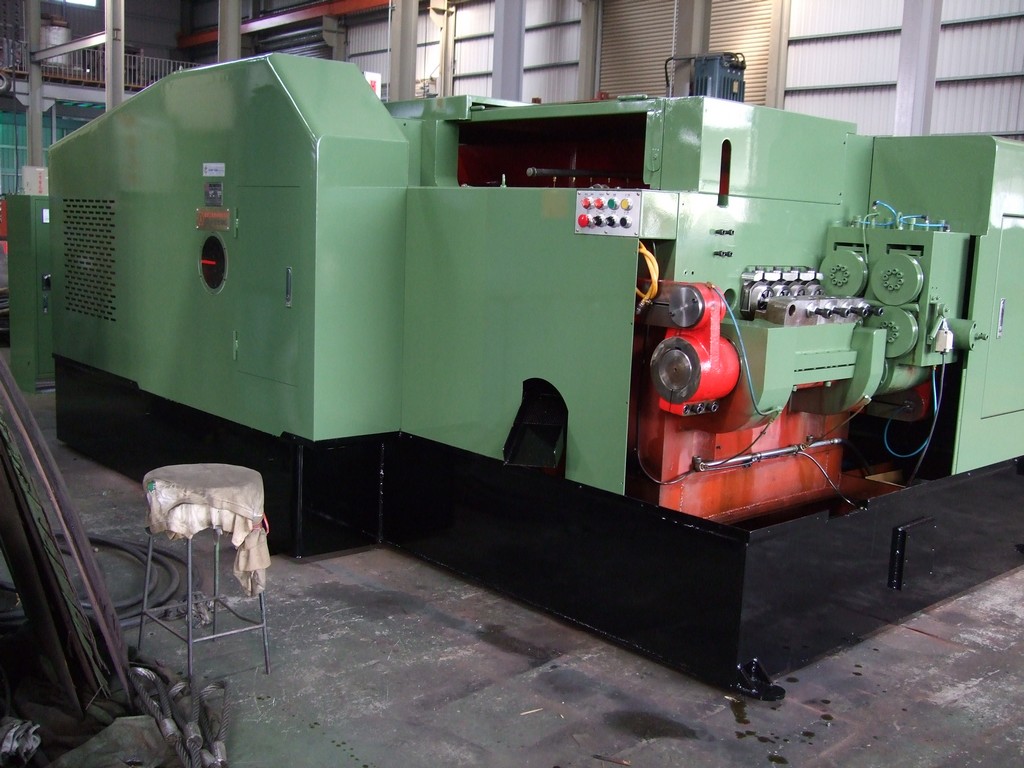

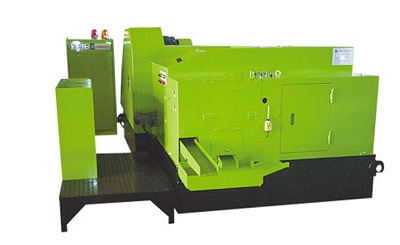

<Nut Forming Machine Presented by CYC>

LS Nut Former
Nut Forming Machine Manufacturer
Taiwan Nut Forming Machine

<Nut Forming Machine Specification>

Following Nut Forming Machine Specification is only for your reference. For more information, please kindly download our catalog.

Automatic 5 Station Nut Forming Machine

Model Max. Cut-Off Ø(mm) Max. Cut-Off Length(mm) Max. Kick-Out Length(mm) Ram Stroke(mm) Forging Power(ton) Product Production Rate(pcs/min) Main Motor(hp) Approx. Weight(ton) Machine Dimensions(L x W x H)(m)
Nut (DIN) Socket Wrench(ANSI)
LS-C-NF-8B-5S 8 5.5 8 40 30 M3-M5 #4 - #9 300-400 10 3.7 1.8x1.5x1.1
LS-C-NF-11B-5S 11 7 13 50 55 M3-M6 #4 - 5/16 320-400 15 4 2.2x1.5x1.1
LS-C-NF-14B-5S 15 15 18 80 85 M6-M8 1/4 - 3/8 200-260 20 7.5 2.9x2x1.3
LS-C-NF-17B-5S 17 18 18 90 110 M8-M10 5/16 - 3/8 170-200 25 8 3.1x2.1x1.4
LS-C-NF-19B-5S 19 20 25 100 130 M8-M12 3/8 - 1/2 150-190 30 12 3.3x2.1x1.5
LS-C-NF-22B-5S 21 25 25 100 150 M10-M14 3/8 - 9/16 140-160 50 15 3.6x2.4x1.7
LS-C-NF-24B-5S 24 30 35 110 240 M12-M16 7/16 - 5/8 120-140 50 23 4.2x2.6x1.8
LS-C-NF-28B-5S 28 30 35 120 300 M16-M18 7/16 - 7/8 100-130 50 26 4.9x2.8x2
LS-C-NF-33B-5S 32 30 40 146 400 M16-M22 5/8 - 7/8 85-105 100 39 4.9x2.8x2
LS-C-NF-36B-5S 36 30 40 160 520 M20-M24 5/8 - 1 75-90 150 45 5.5x3.2x2.3
LS-C-NF-41B-5S 40 45 60 210 620 M22-M27 7/8 - 1 65-75 200 65 6.5x3.5x2.5

Automatic 6 Station Nut Forming Machine

Model Max. Cut-Off Ø(mm) Max. Cut-Off Length(mm) Max. Kick-Out Length(mm) Ram Stroke(mm) Forging Power(ton) Product Production Rate(pcs/min) Main Motor(hp) Approx. Weight(ton) Machine Dimensions(L x W x H)(m)
Nut (DIN) Socket Wrench(ANSI)
LS-C-NF-8B-6S 8 5.5 8 40 35 M3-M5 #4 - #9 300-360 10 3.8 1.9x1.6x1
LS-C-NF-11B-6S 11 7 13 50 60 M3-M6 #4 - 5/16 260-360 15 5 2.3x1.8x1.1
LS-C-NF-14B-6S 15 15 18 80 90 M6-M8 1/4 - 3/8 200-230 20 8 2.9x2.1x1.3
LS-C-NF-17B-6S 17 18 18 90 120 M8-M10 5/16 - 3/8 160-180 20 10 3.2x2.2x1.4
LS-C-NF-19B-6S 19 20 25 100 140 M8-M12 3/8 - 1/2 120-160 40 14 3.5x2.2x1.5
LS-C-NF-22B-6S 21 25 25 100 160 M10-M14 3/8 - 9/16 100-140 50 17 3.9x2.5x1.7
LS-C-NF-24B-6S 24 30 35 110 260 M12-M16 7/16 - 5/8 100-120 50 25 4.3x2.7x1.7
LS-C-NF-28B-6S 28 30 35 120 330 M16-M18 7/16 - 7/8 90-100 75 29 5x2.7x2
LS-C-NF-33B-6S 32 30 40 146 420 M16-M22 5/8 - 7/8 80-100 125 44 5.5x3x2
LS-C-NF-36B-6S 36 30 40 160 560 M20-M24 5/8 - 1 70-90 175 50 6x3x2.2
LS-C-NF-41B-6S 40 45 60 210 650 M22-M27 7/8 - 1 65-75 250 70 7.7x3x2.5
LS-C-NF-45B-6S 45 50 60 210 750 M24-M30 7/8 - 1 1/8 50-60 300 140 9x3.5x2.7
LS-C-NF-50B-6S 50 56 60 210 840 M27-M32 1 - 1 1/4 45-55 400 150 9x3.5x2.7

Automatic 6 Station Long Stroke Nut Forming Machine

Model Max. Cut-Off Ø(mm) Max. Cut-Off Length(mm) Max. Kick-Out Length(mm) Ram Stroke(mm) Forging Power(ton) Product Production Rate(pcs/min) Main Motor(hp) Approx. Weight(ton) Machine Dimensions(L x W x H)(m)
Nut (DIN) Socket Wrench(ANSI)
LS-C-NF-8B-6SL 8 8 20 50 35 M3-M5 #4 - #9 300-360 10 3.8 1.9x1.6x1
LS-C-NF-11B-6SL 11 12 20up 60 65 M3-M6 #4 - 5/16 260-360 15 5 2.3x1.8x1.1
LS-C-NF-14B-6SL 16 20 40up 120 100 M6-M10 1/4 - 3/8 200-230 20 8 2.9x2.1x1.3
LS-C-NF-17B-6SL 17 22 40up 130 130 M8-M10 5/16 - 3/8 160-180 20 10 3.2x2.2x1.4
LS-C-NF-19B-6SL 19 32 50up 160 160 M8-M12 3/8 - 1/2 120-160 40 14 3.5x2.2x1.5
LS-C-NF-22B-6SL 21 35 50up 180 190 M10-M14 3/8 - 9/16 100-140 50 17 3.9x2.5x1.7
LS-C-NF-24B-6SL 24 40 50up 200 280 M12-M16 7/16 - 5/8 100-120 50 25 4.3x2.7x1.7
LS-C-NF-28B-6SL 28 45 50up 220 370 M16-M18 7/16 - 7/8 90-100 75 29 5x2.7x2
LS-C-NF-33B-6SL 32 60 60up 240 450 M16-M22 5/8 - 7/8 80-100 125 44 5.5x3x2
LS-C-NF-36B-6SL 36 70 60up 280 630 M20-M24 5/8 - 1 70-90 175 50 6x3x2.2
LS-C-NF-41B-6SL 40 80 60up 280 700 M22-M27 7/8 - 1 65-75 250 70 7.7x3x2.5
LS-C-NF-45B-6SL 45 80 60up 360 800 M24-M30 7/8 - 1 1/8 50-60 300 140 9x3.5x2.7
LS-C-NF-50B-6SL 50 80 60up 360 900 M27-M32 1 - 1 1/4 45-55 400 150 9x3.5x2.7

Automatic 7 Station Long Stroke Nut Forming Machine

Model Max. Cut-Off Ø(mm) Max. Cut-Off Length(mm) Max. Kick-Out Length(mm) Ram Stroke(mm) Forging Power(ton) Product Production Rate(pcs/min) Main Motor(hp) Approx. Weight(ton) Machine Dimensions(L x W x H)(m)
Nut (DIN) Socket Wrench(ANSI)
LS-C-NF-8B-7SL 8 8 20 50 35 M3-M5 #4 - #9 170-190 15 4.2 2.1x1.7x1.1
LS-C-NF-11B-7SL 11 12 20up 60 65 M3-M6 #4 - 5/16 150-170 20 5.5 2.7x1.8x1.1
LS-C-NF-14B-7SL 16 20 40up 120 100 M6-M10 1/4 - 3/8 130-150 30 8.7 3.3x2.2x1.4
LS-C-NF-17B-7SL 17 22 40up 130 135 M8-M10 5/16 - 3/8 100-120 50 11.5 3.7x2.4x1.5
LS-C-NF-19B-7SL 19 32 50up 160 165 M8-M12 3/8 - 1/2 80-100 75 17.5 4.2x2.4x1.8
LS-C-NF-22B-7SL 21 35 50up 180 200 M10-M14 3/8 - 9/16 80-90 75 26 4.6x2.8x1.8
LS-C-NF-24B-7SL 24 40 50up 200 295 M12-M16 7/16 - 5/8 70-80 125 31 5.3x3x2
LS-C-NF-28B-7SL 28 45 50up 220 390 M16-M18 7/16 - 7/8 55-70 150 44 5.5x3x2.1
LS-C-NF-33B-7SL 32 60 60up 240 480 M16-M22 5/8 - 7/8 50-60 250 53 6.2x3.2x2.2
LS-C-NF-36B-7SL 36 70 60up 280 630 M20-M24 5/8 - 1 50-60 250 65 7x3.1x2.5
LS-C-NF-41B-7SL 40 80 60up 280 700 M22-M27 7/8 - 1 45-55 300 92 7.8x3x2.6
