Milling Machine
Milling Machine is used for secondary processing in the fastener industry. These machines from Taiwan provide precision milling capabilities for various fastener production requirements. CYC offers Bed Type Vertical Milling Machines from Huen Chen, featuring high rigidity, precision, and versatile spindle speed configurations.
Download Catalog (PDF)Milling Machine Presented by CYC
Milling Machine Specification
Following Milling Machine Specification is only for your reference. For more information, please kindly download our catalog.

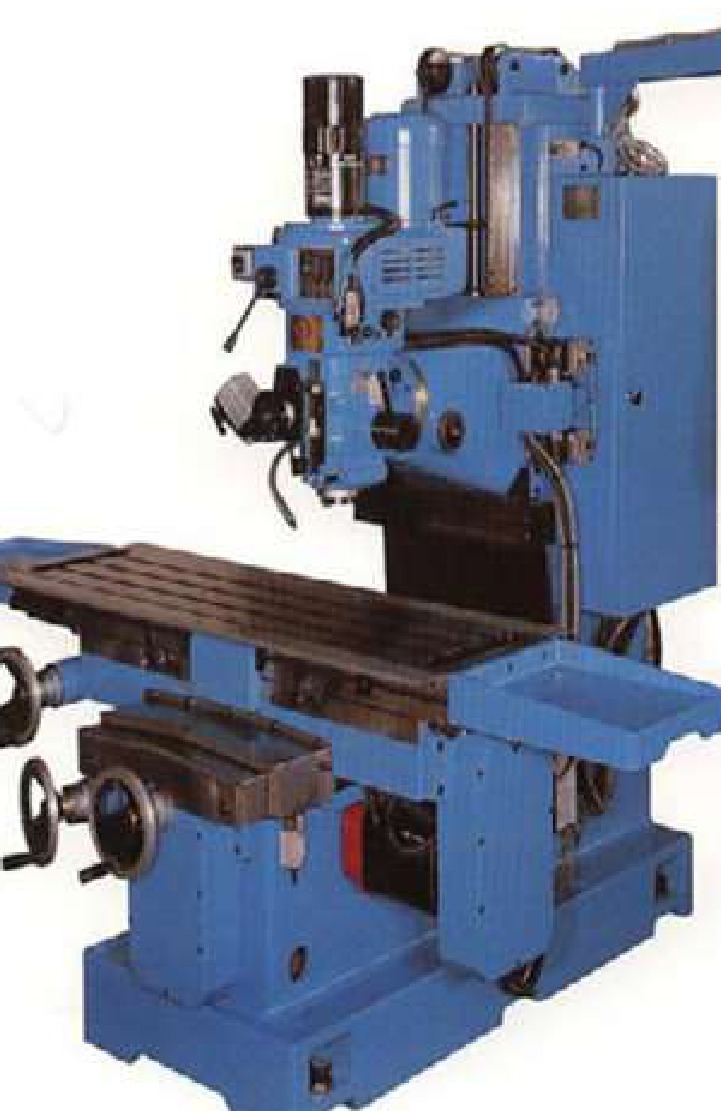

Bed Type Vertical Milling Machine (Huen Chen)
| Model | Table Size (mm) | Spindle Speeds (Vertical Head) (r.p.m) | Distance from Table to Spindle (mm) | Distance from Spindle Center to column (mm) | Machine Dimension (L x W x H) (cm) | Net Weight (kg) |
|---|---|---|---|---|---|---|
| HC-2000B | 1300x300 | 75-3600 (16 Steps) | 450 | 180-630 | 220x204x237 | 2600 |
| HC-2000C | 1300x300 | Powerful Milling Head | 350 | 305 | 220x221.2x199 | 2600 |
| HC-2000BC | 1300x300 | 75-3600 (16 Steps) | 450 | 180-630 | 220x204x237 | 2750 |
| HC-2000G | 1300x300 | 75-3600 (Non-Step Converter) | 450 | 180-630 | 220x204x270 | 2550 |
| HC-2000D | 1200x300 | 75-3600 (16 Steps) | 450 | 180-630 | 180x180x235 | 2200 |
