Tapping Machine
Pneumatic 4 Spindles Tapping Machines tap internal threads on nuts and metal parts at high speed. CYC distributes YW-FNT series 13B4T to 38B4T tapping machines covering tap sizes #6 to M24.
Download Catalog (PDF)Tapping Machine Presented by CYC
Following Tapping Machine specification is only for your reference. For more information, please kindly download our catalog.

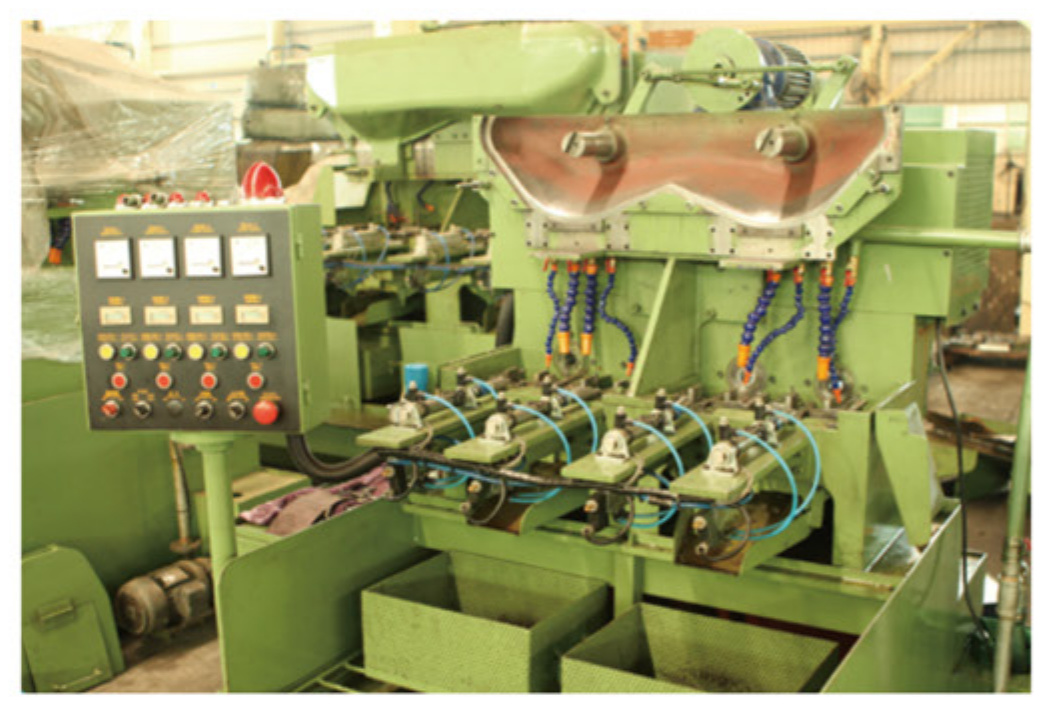

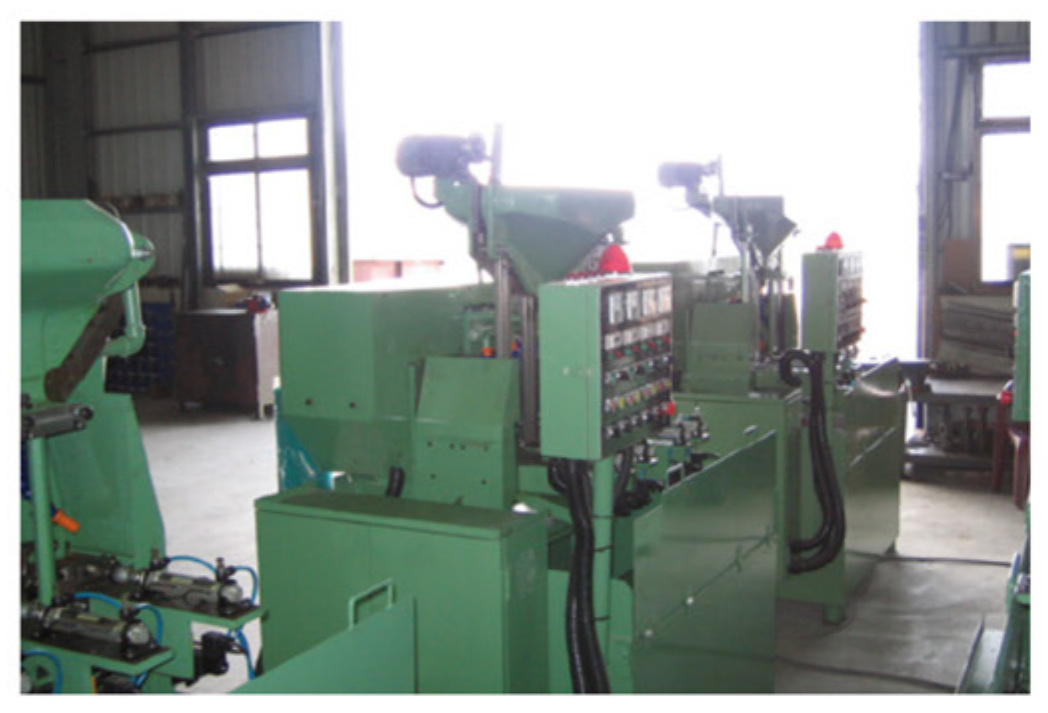

Pneumatic 4 Spindles Tapping Machine
| Model | Product Range | Output (pcs/min) | Shaft Revolutions (R.P.M) | Main Motor | Tap (mm) | Approx Weight (kg) | Machine Dimensions (L × W × H) (cm) | |
|---|---|---|---|---|---|---|---|---|
| YW-FNT-13B4T | M5-M8 | #8 - 5/16 | 200-400 | 1600-2580 | 1HP×2P×4 | M16x25R | 700 | 128×153×180 |
| YW-FNT-19B4T | M8-M12 | 5/16 - 1/2 | 160-280 | 1050-2400 | 2HP×4P×4 | M21Sx20R | 900 | 130×169×159 |
| YW-FNT-24B4T | M12-M16 | 1/2 - 5/8 | 120-160 | 780-1580 | 3HP×4P×4 | M320x35R | 1500 | 162×172×176 |
| YW-FNT-33B4T | M16-M22 | 5/8 - 7/8 | 90-120 | 550-1150 | 5HP×6Px4 | M400x45R | 3500 | 182×216×226 |
| YW-FNT-38B4T | M18-M24 | 3/4 - 1 | 80-110 | 520-820 | 7.5HPx6Px4 | M450x55R | 5150 | 194×230×242 |
