Blind Rivet Assembly Machine
Blind Rivet Assembly Machines mass-produce blind rivets and assembly grip products at high speed. CYC offers high-speed blind rivet assembly and automatic assembly grip machines from LAN DEE, designed for the demanding throughput requirements of rivet manufacturers.
Download Catalog (PDF)Blind Rivet Assembly Machine Presented by CYC
Following Blind Rivet Assembly Machine specification is only for your reference. For more information, please kindly download our catalog.

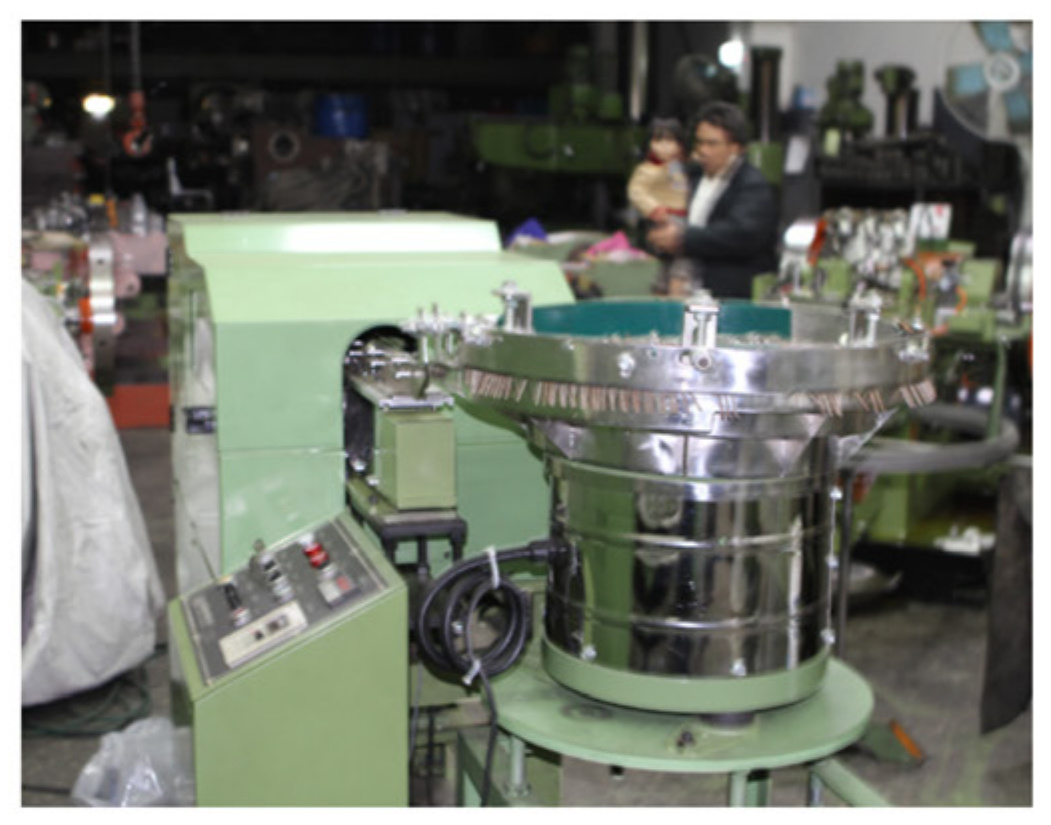

High Speed Blind Rivet Assembly Machine
| Model | Max. Production Ø (mm) | Max. Production Length (mm) | Mandrel Ø × Length (mm) | Speed (pcs/min) | Motor | Machine Size (L×W×H cm) |
|---|---|---|---|---|---|---|
| LDA-3 | 3.2-6.4 | 6-30 | 1.6-4.0×30-50 | 300-450 | 1/4HP | 150×95×180 |

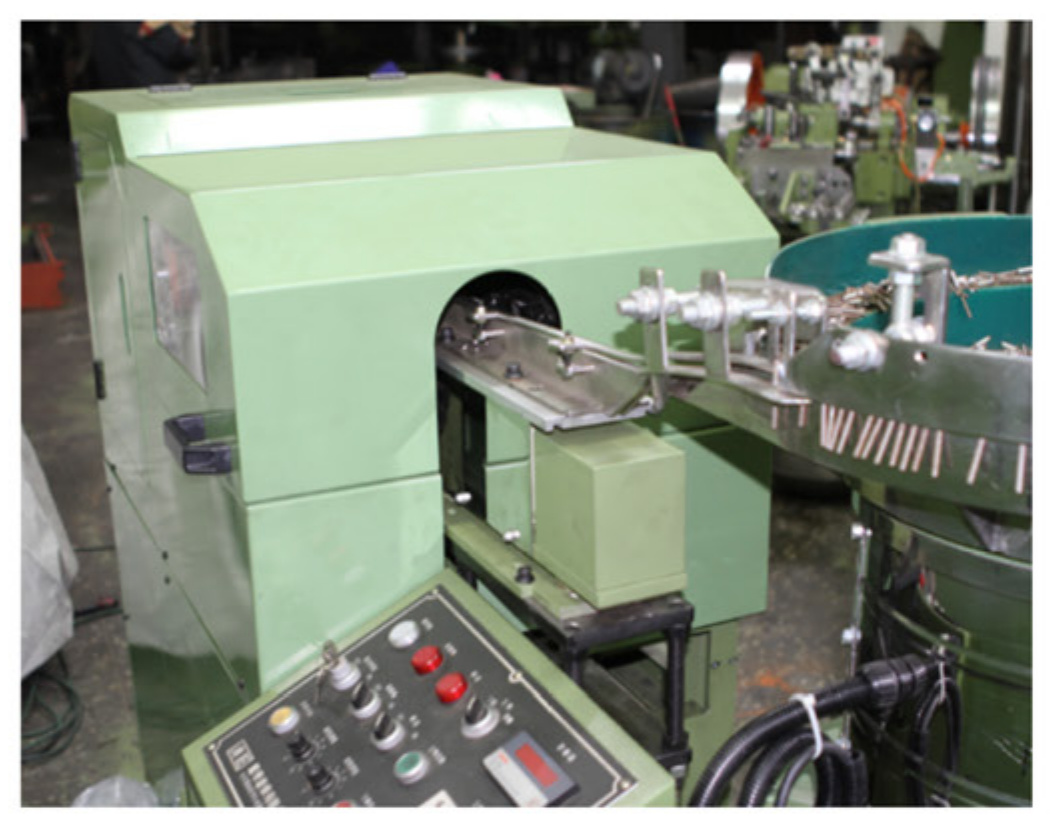

High Speed Automatic Assembly Grip Machine
| Model | Max. Production Ø (mm) | Max. Production Length (mm) | Mandrel Ø × Length (mm) | Speed (pcs/min) | Motor | Machine Size (L×W×H cm) |
|---|---|---|---|---|---|---|
| LDA-4 | 3.2-6.4 | 6-19 | 1.6-4.0×48-70 | 200-250 | 3HP | 140×165×230 |
| LDA-5 | 3.2-6.4 | 19-25 | 1.6-4.0×45-70 | 200-250 | 3HP | 140×165×230 |
