Second Punch

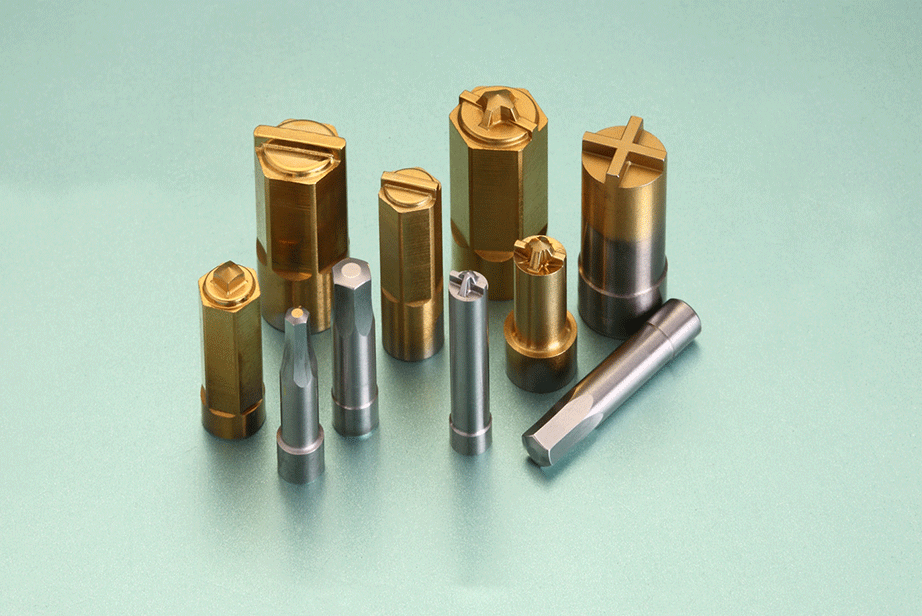

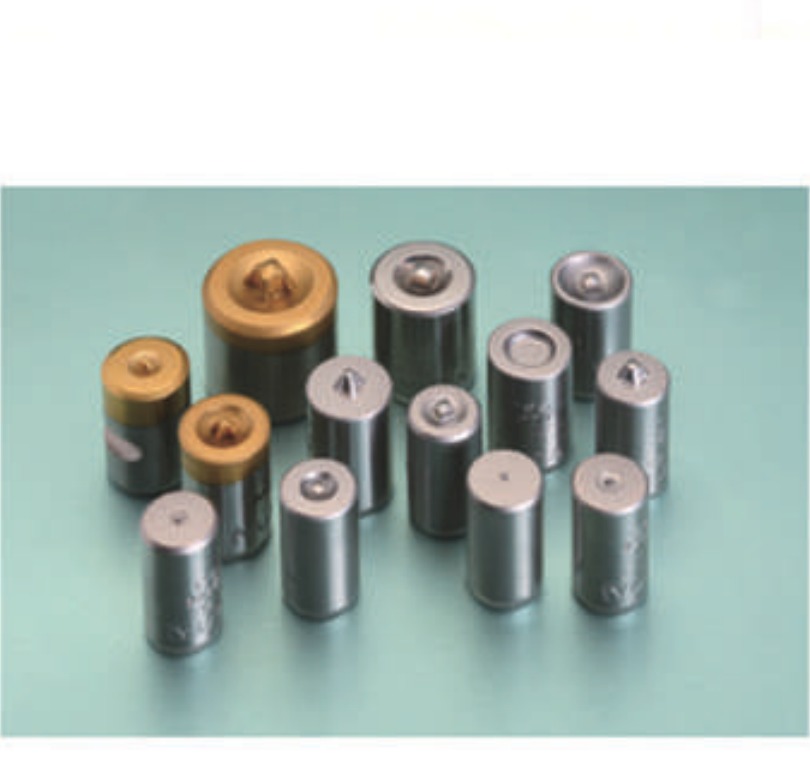

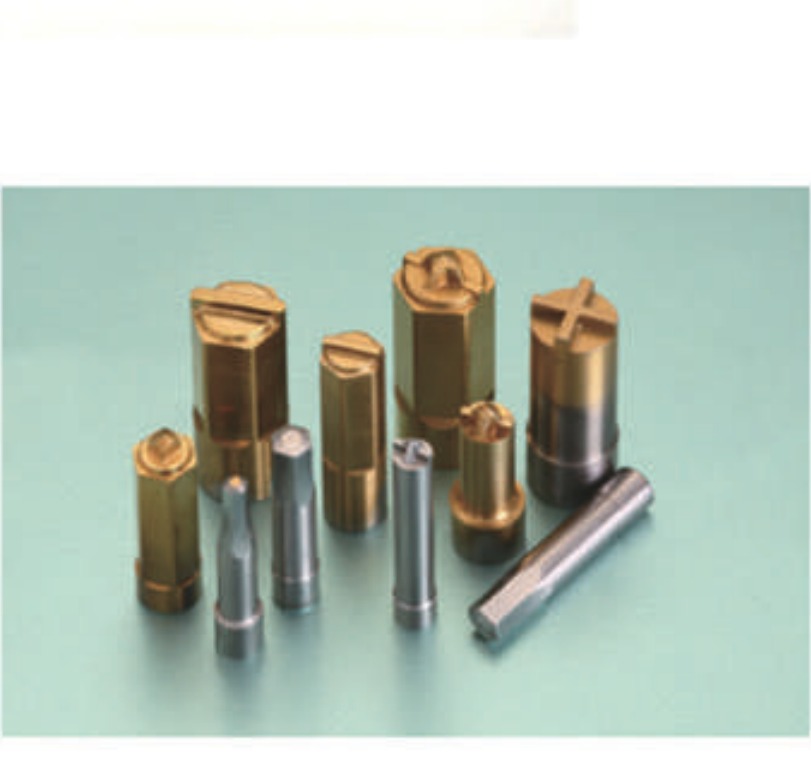

Second Punch tooling is used in cold heading machines for forming screw heads and driving recesses. CYC supplies second punches for all standard screw head styles (Flat, Binding, Oval, Truss, Brazier, Pan, Round, Button, Cheese, Fillister, Washer Head, etc.) and driving recesses (Phillips, Slotted, Six-Lobe, Torx, Square, Pozidrive, Tri-Wing, and more).

Download Catalog (PDF)

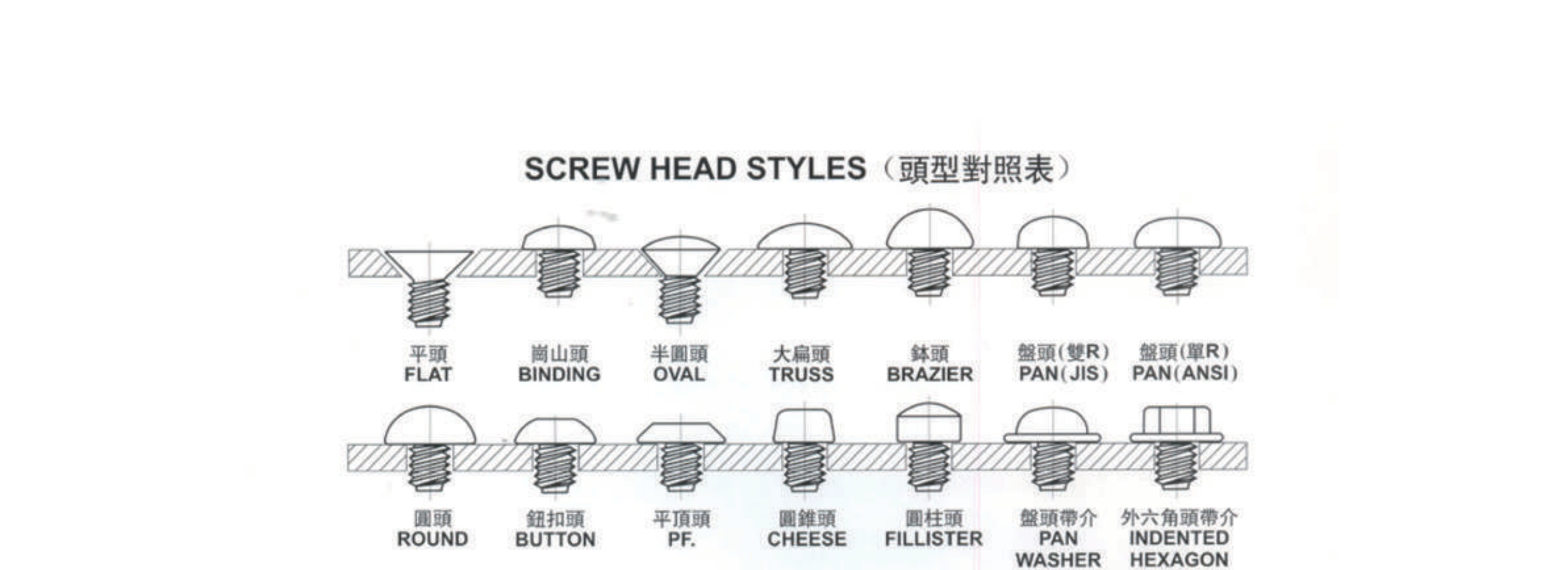

Screw Head Styles（頭型對照表）

Screw Head Styles Reference Chart

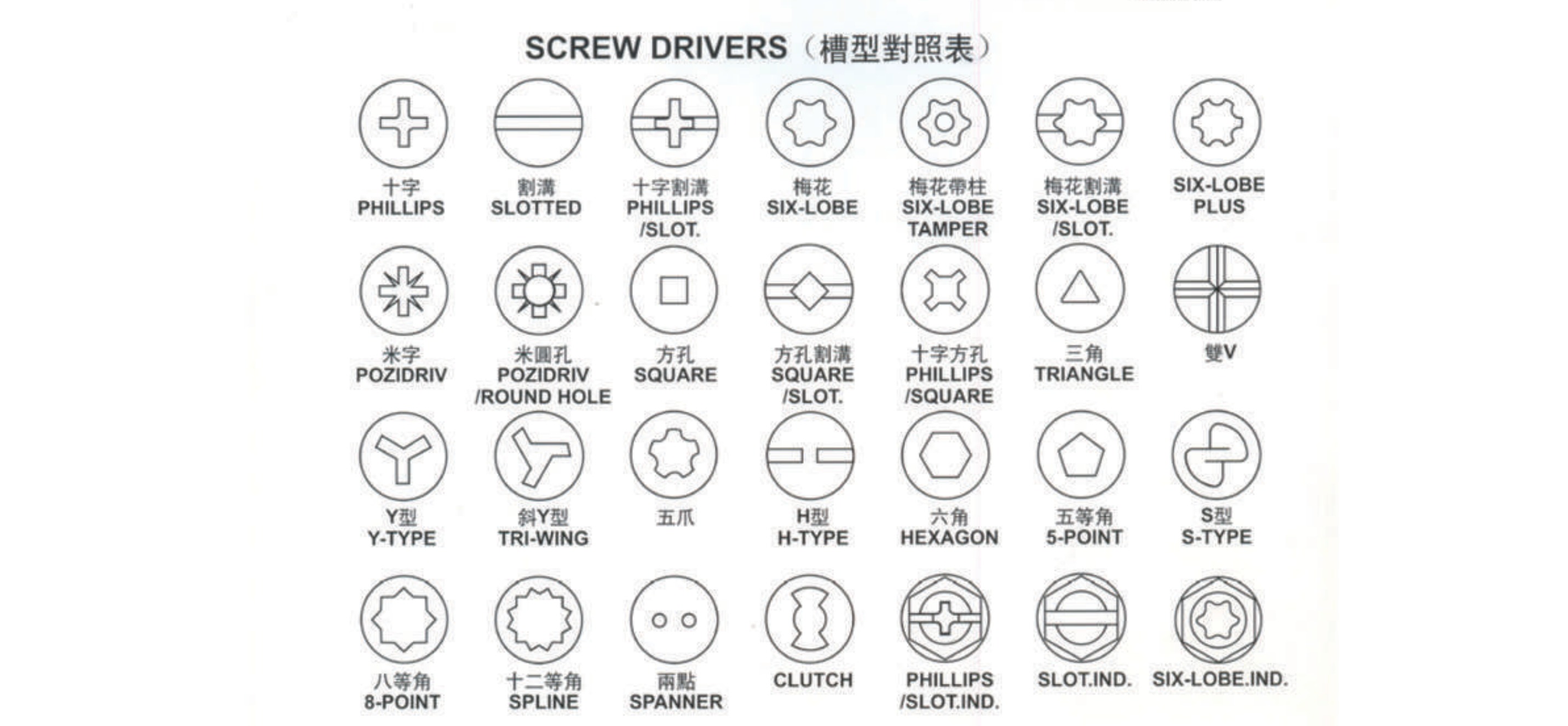

Screw Drivers（槽型對照表）

Screw Drivers Reference Chart

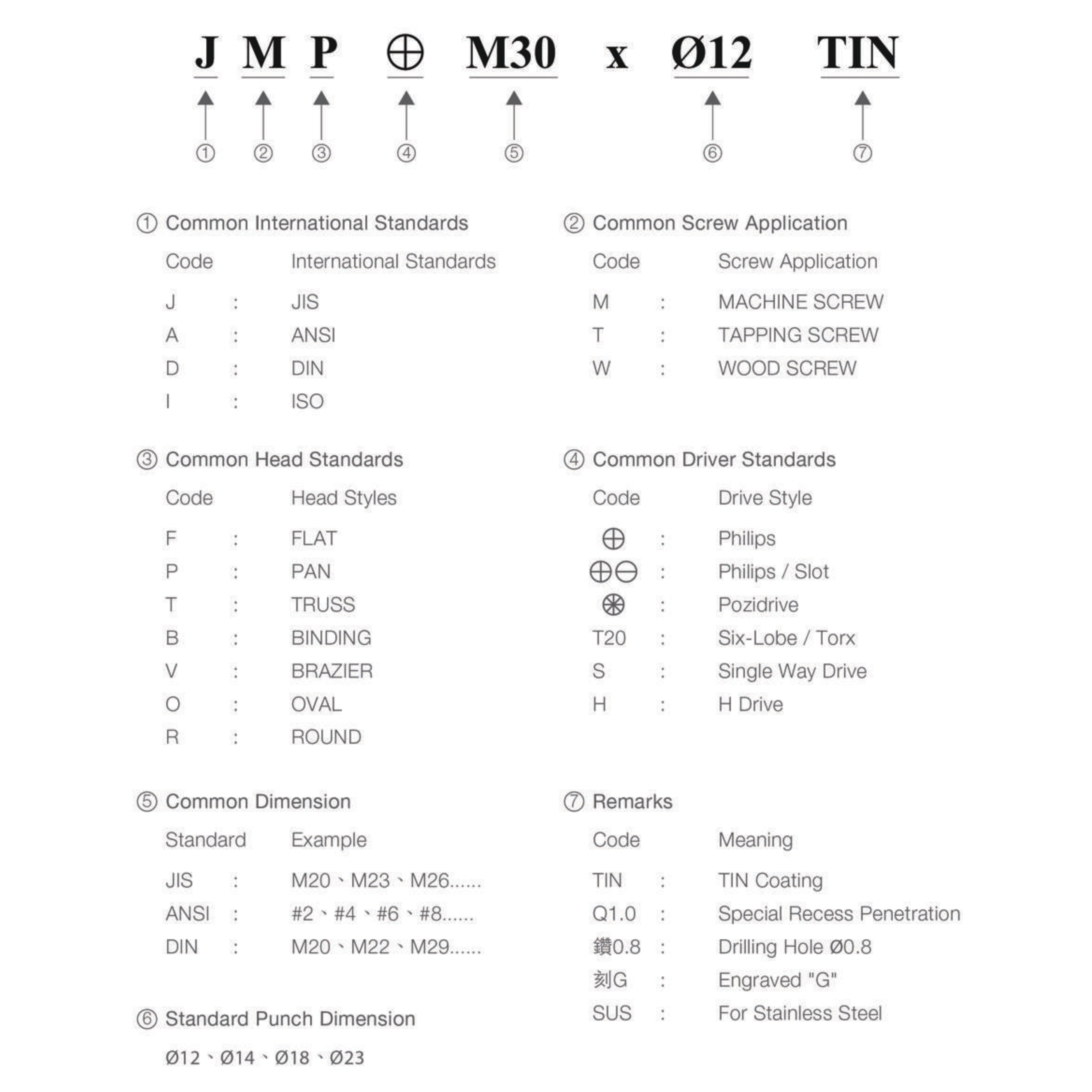

Code of 2nd Punch Specification

Code of 2nd Punch Specification

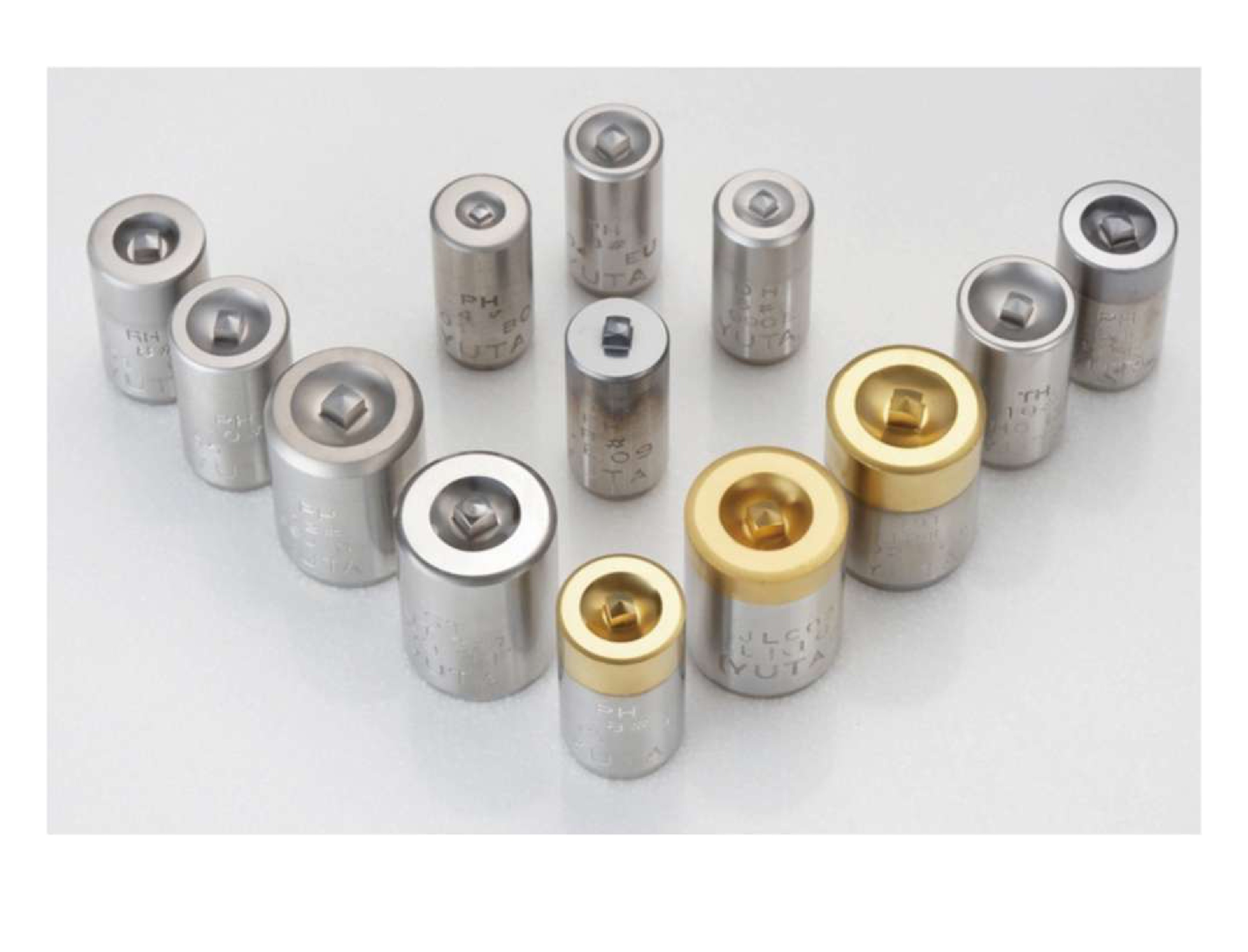

Material of Second Punch

Plain
(Plain)		 TiN-Coated
(Golden)		 TiCN-Coated
(Black)		 TiAlN-Coated
(Brown)		 AlTiCrN-Coated
(Gray)		 Note
M2 Mark:
No Mark		 Mark:
TiN		 Mark:
TiCN		 Mark:
TiAlN		 Mark:
AlTiCrN		 For Carbon Steel Screw
M42 Mark:
ST		 Mark:
ST
xxx
TiN		 Mark:
ST
xxx
TiCN		 Mark:
ST
xxx
TiAlN		 Mark:
ST
xxx
AlTiCrN		 For Stainless Steel Screw
