Washer Assembly Machine
Screw Washer Assembling Machines automatically combine screws with washers at high production rates, eliminating manual assembly bottlenecks. CYC offers proven washer assembling solutions from MT and other Taiwan brands, supporting a broad range of screw lengths and washer specifications.
Download Catalog (PDF)Washer Assembly Machine Presented by CYC
Following Washer Assembly Machine specification is only for your reference. For more information, please kindly download our catalog.

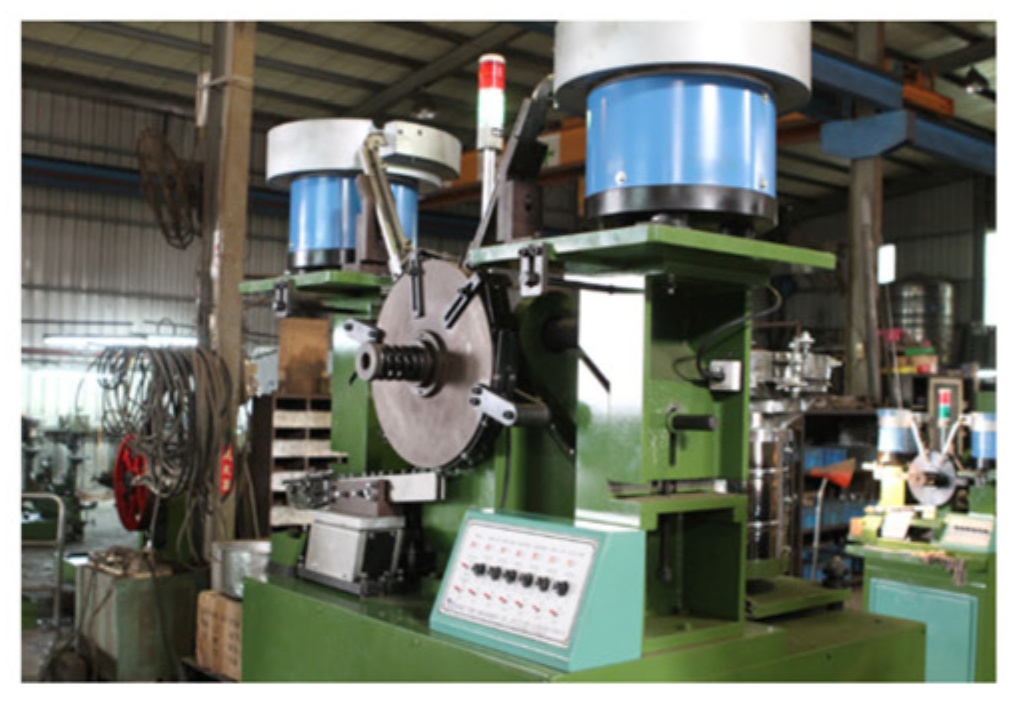

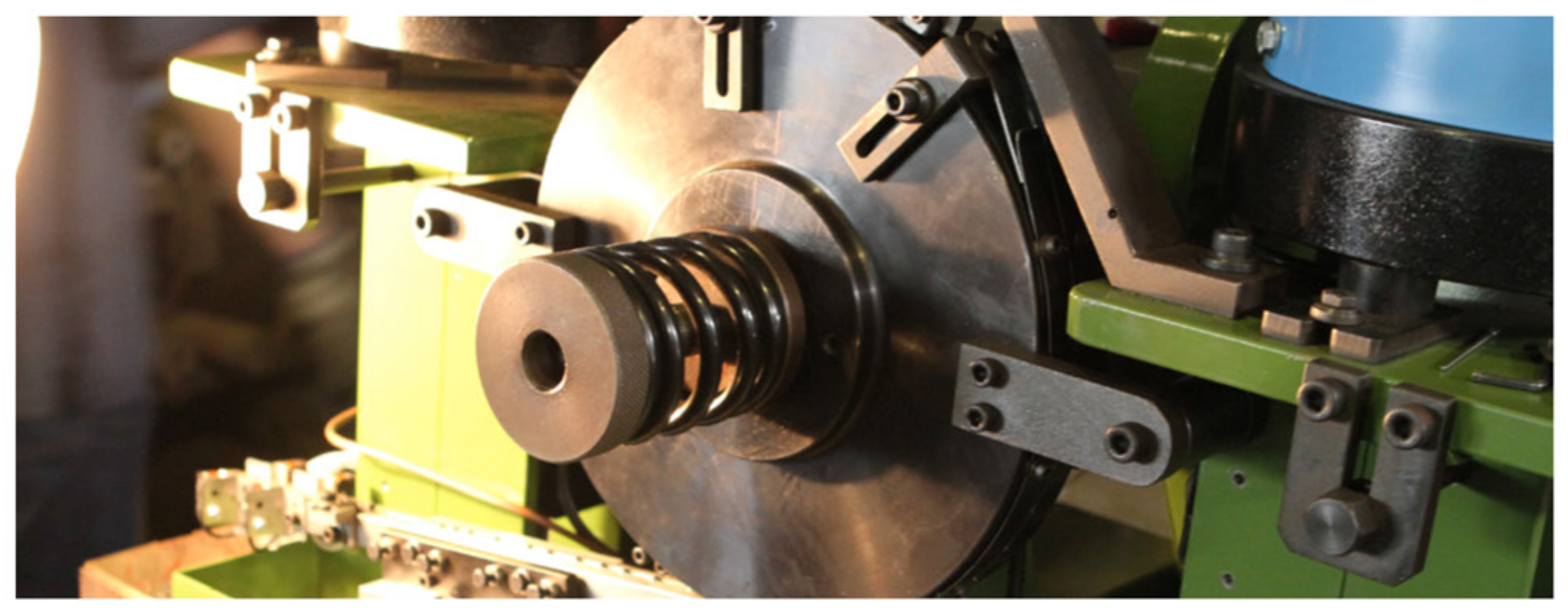

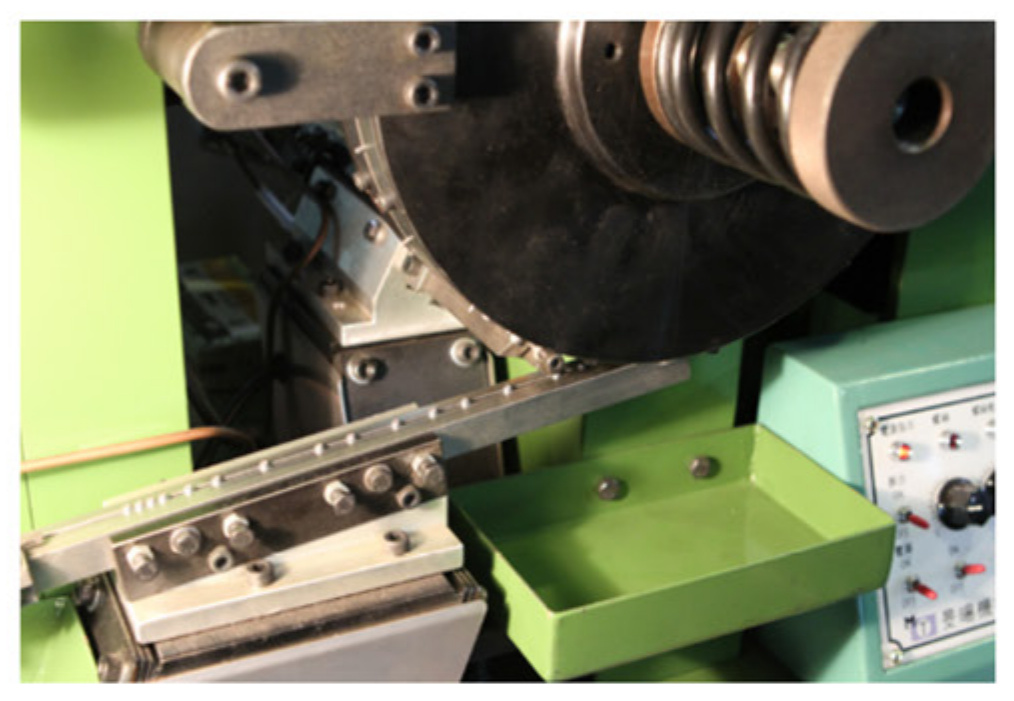

Screw Washer Assembling Machine (MT Series)
| Model | Screw Length (mm) | Production Rate (pcs/min) | Power (HP) | N.W (Kg) |
|---|---|---|---|---|
| MT-1201 | 1.4×20 | 250-300 | 1/4 | 450 |
| MT-1203 | 2×20 | 250-300 | 1/4 | 450 |
| MT-1203 | 3×30 | 250-300 | 1/4 | 600 |
| MT-1206 | 6×60 | 180-220 | 1/2 | 1200 |
| MT-1208 | 8×75 | 150-180 | 1/2 | 1400 |
| MT-1210 | 10×75 | 150-180 | 1/2 | 1500 |
| MT-1212 | 12×75 | 150-180 | 1/2 | 1600 |

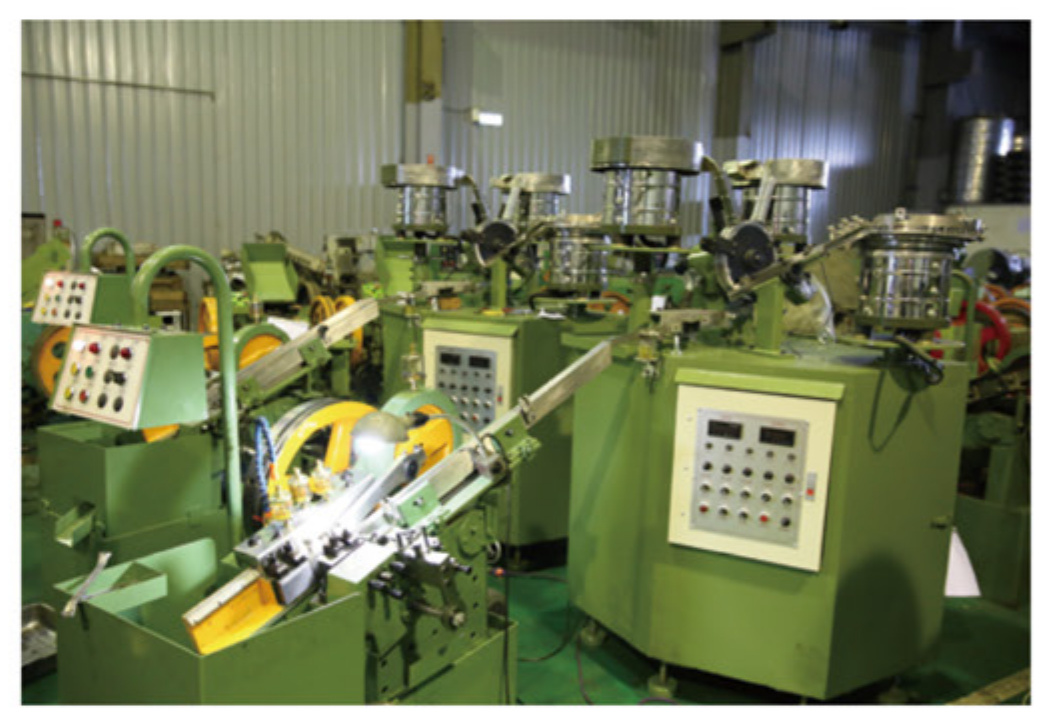

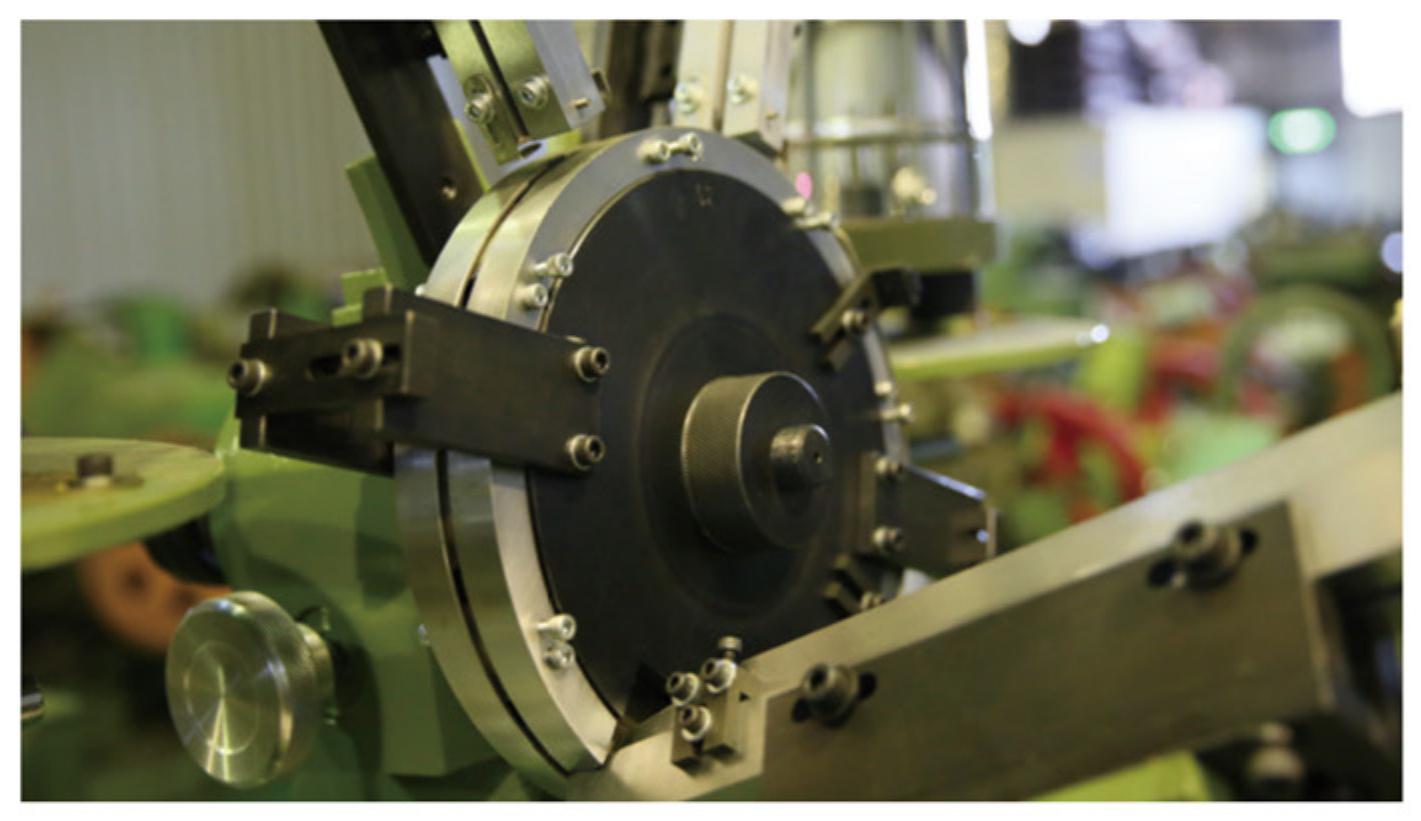

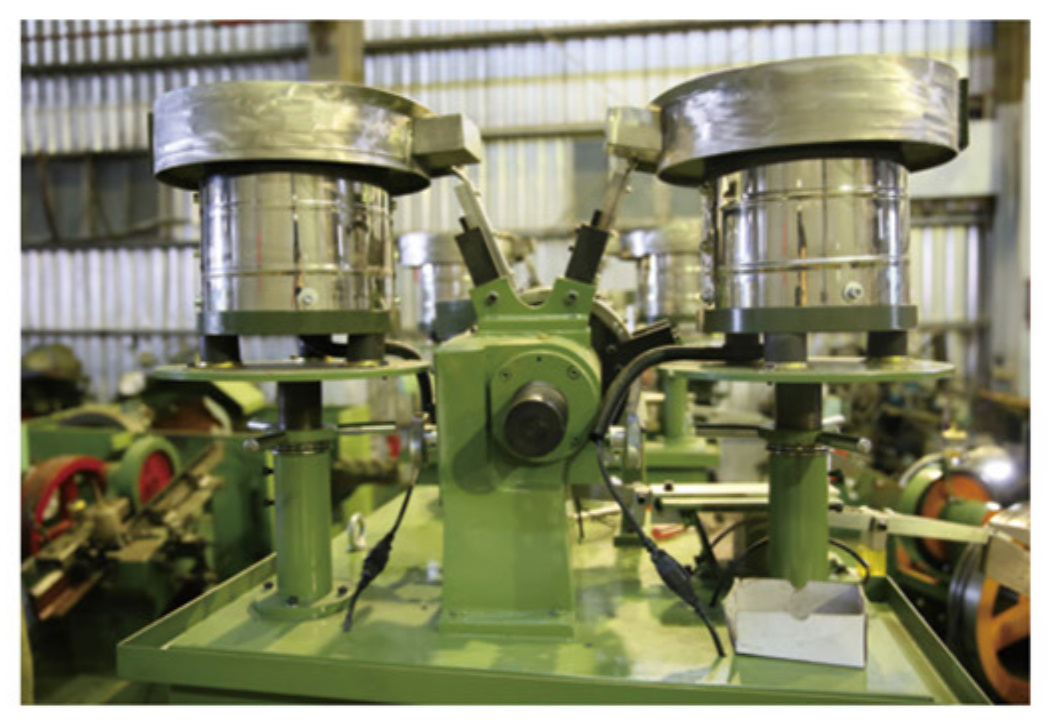

Screw Washer Assembling Machine (WA Series)
| Model | Specification | Length (mm) | Production Rate (pcs/min) | Power (HP) | Net Weight (kg) |
|---|---|---|---|---|---|
| WA-M4 | M3-M4 | 5-30 | 100-280 | 1/2 | 600 |
| WA-M5 | M4-M5 | 5-30 | 100-280 | 1/2 | 600 |
| WA-M6 | M5-M6 | 5-30 | 100-260 | 1/2 | 600 |
| WA-M10 | M6-M10 | 15-120 | 100-160 | 1 | 1200 |
| WA-M12 | M10-M12 | 15-120 | 100-160 | 1 | 1200 |
