Nut Forming Dies

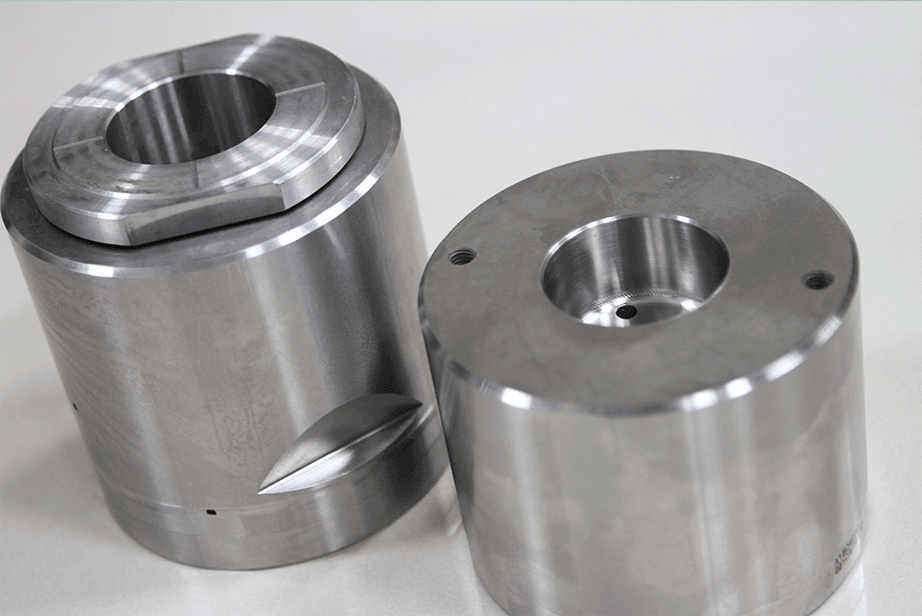

Nut Forming Dies are precision tooling components for cold forging nut production. CYC provides a complete nut forming tool system including die assemblies, die cores, forming die holders, punch & K.O. systems, feed systems, cut-off systems, piercing parts, transfer systems, and special systems — all engineered for multi-station nut formers.
Download Catalog (PDF)Nut Forming Tool List
Following Nut Forming Tool List is only for your reference. For more information, please kindly download our catalog.

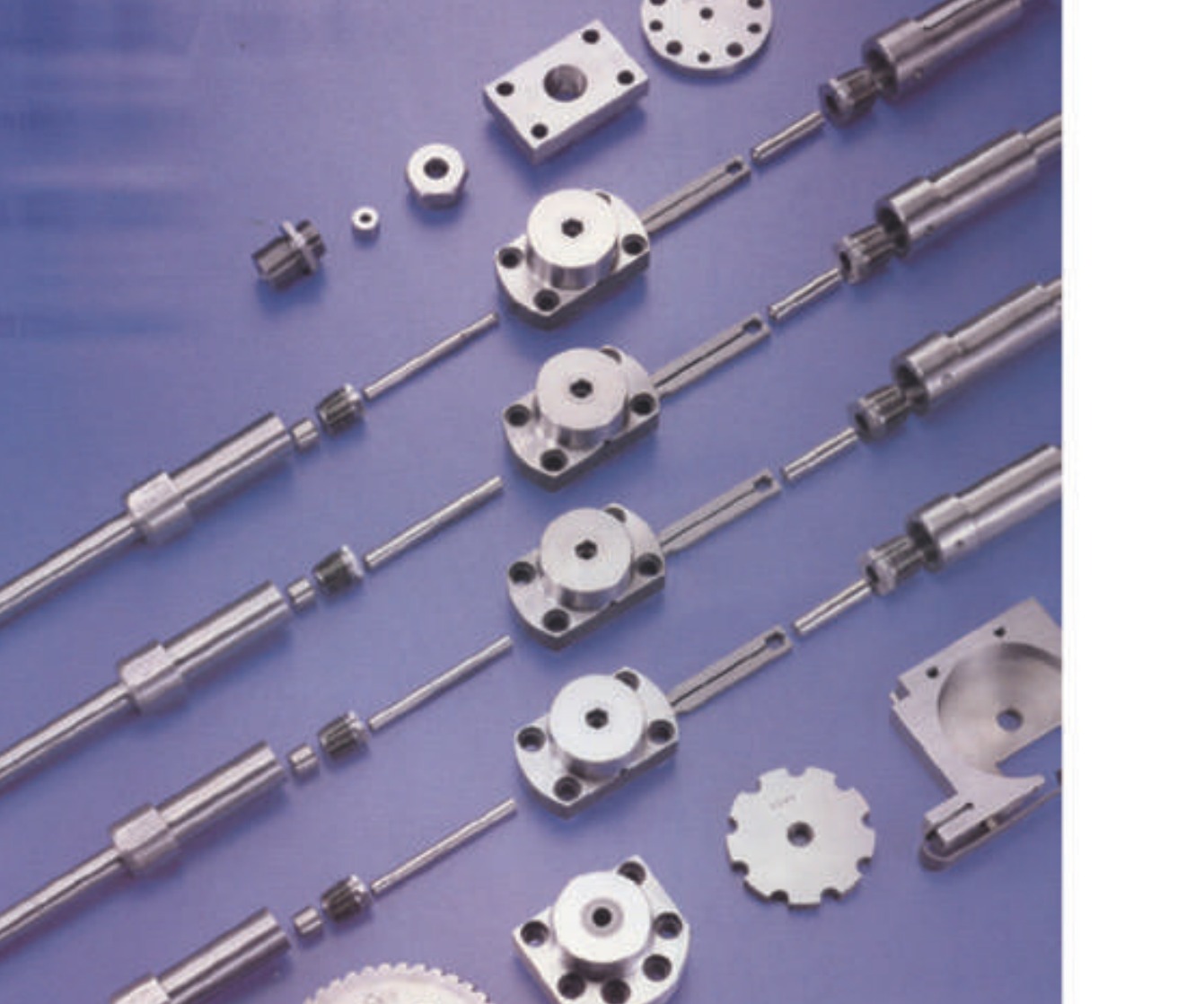

(1) Die System
- A410 — Cutting Quill Assembly
- 410 — Cutting Quill Assembly Core
- 420 — Cutting Quill Assembly Screw
- 430 — Cutting Quill Holder
- A411 — 1st Die Assembly
- 411 — 1st Die Core
- 421 — 1st Die Assembly Screw
- 431 — 1st Forming Die Holder
- A412 — 2nd Die Assembly
- 412 — 2nd Die Core
- 422 — 2nd Die Assembly Screw
- 432 — 2nd Forming Die Holder
- A413 — 3rd Die Assembly
- 413 — 3rd Die Core
- 423 — 3rd Die Assembly Screw
- 433 — 3rd Forming Die Holder
- A414 — 4th Die Assembly
- 414 — 4th Die Core
- 424 — 4th Die Assembly Screw
- 434 — 4th Forming Die Holder
- A415 — 5th Die Assembly
- 415 — 5th Die Core
- 425 — 5th Die Assembly Screw
- 435 — 5th Forming Die Holder

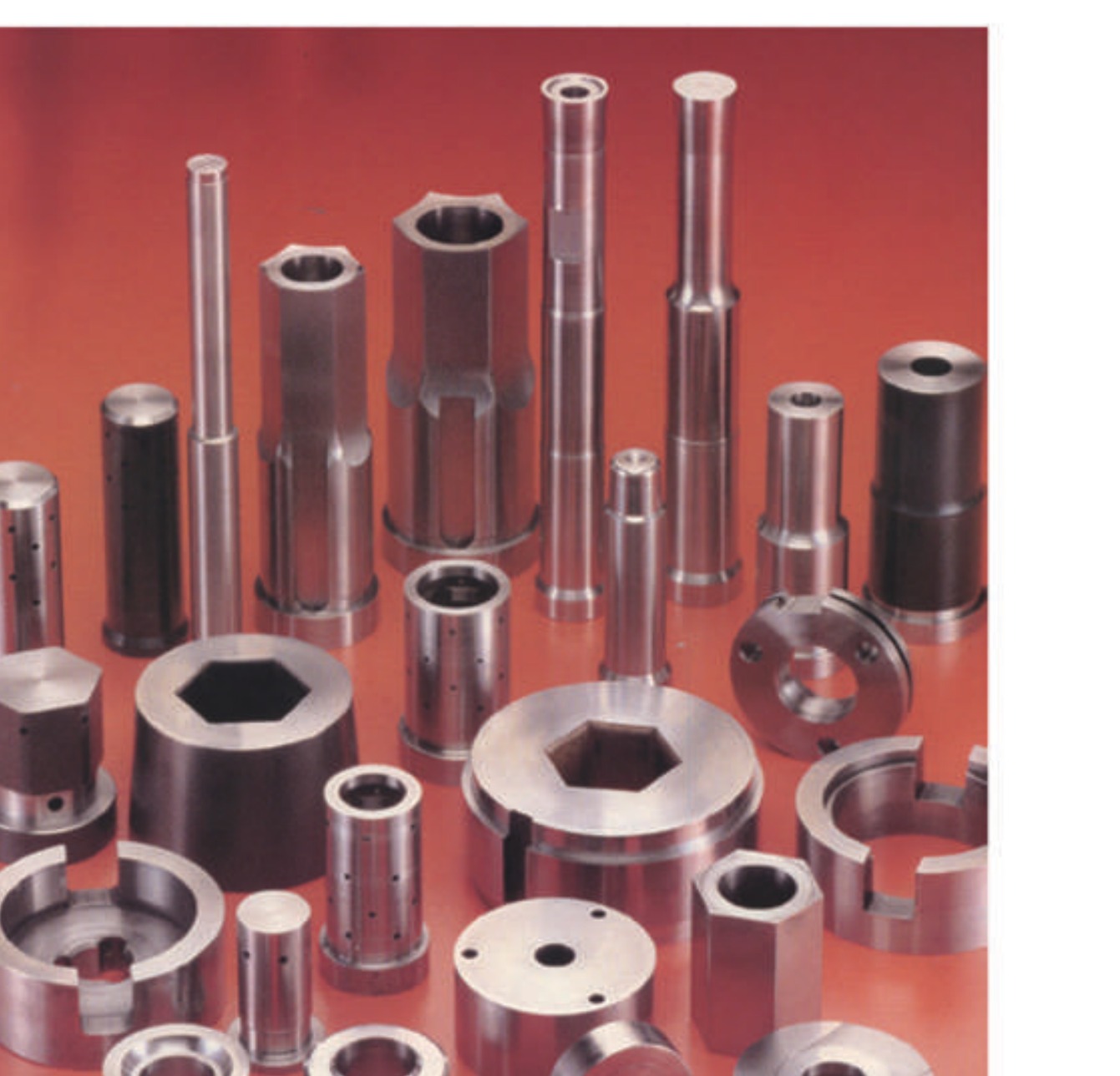

(2) Punch & K.O. System
- 111 — 1st Punch
- 112 — 2nd Punch
- 113 — 3rd Punch
- 114 — 4th Punch
- 115 — 5th Punch
- 110 — Piercing Punch
- 141 — 1st Punch Collect
- 142 — 2nd Punch Collect
- 143 — 3rd Punch Collect
- 144 — 4th Punch Collect
- 145 — 5th Punch Collect
- 211 — 1st K.O. Pin
- 212 — 2nd K.O. Pin
- 213 — 3rd K.O. Pin
- 214 — 4th K.O. Pin
- 215 — 5th K.O. Pin
- 241 — 1st K.O. Pin Collect
- 242 — 2nd K.O. Pin Collect
- 243 — 3rd K.O. Pin Collect
- 244 — 4th K.O. Pin Collect
- 245 — 5th K.O. Pin Collect
(3) Feed System
- 805 — Ratchet Wheel
- 806 — Feed Roller
(4) Cut-Off System
- 301 — Cutter
- 302 — Spring Clip for Cutter
(5) Piercing Part
- 503 — P Type Piercing Die Core
- 507 — Stripper
- 139 — Piercing Punch Holder
(6) Transfer System
- 611 — 1st Transfer Finger
- 612 — 2nd Transfer Finger
- 613 — 3rd Transfer Finger
- 614 — 4th Transfer Finger
- 615 — 5th Transfer Finger
(7) Special System
- 454/455 — 4th/5th Die Bush Screw
- 464/465 — 4th/5th Die Bush
- 474/476 — 4th/5th Die Bush Ring
- 484A/486A — 4th/5th Die Upper Washer
- 484B/486B — 4th/5th Die Lower Washer
- 494/495 — 4th/5th Die Pushing Sleeve
Common Tools
(1) Punch & K.O. System
- 121 — 1st Punch Filler
- 122 — 2nd Punch Filler
- 123 — 3rd Punch Filler
- 124 — 4th Punch Filler
- 125 — 5th Punch Filler
- 129 — Piercing Punch Filler
- 131 — 1st Punch Holder
- 132 — 2nd Punch Holder
- 133 — 3rd Punch Holder
- 134 — 4th Punch Holder
- 135 — 5th Punch Holder
- 221 — 1st K.O. Pin Filler
- 222 — 2nd K.O. Pin Filler
- 223 — 3rd K.O. Pin Filler
- 224 — 4th K.O. Pin Filler
- 225 — 5th K.O. Pin Filler
- 231 — 1st K.O. Pin Holder
- 232 — 2nd K.O. Pin Holder
- 233 — 3rd K.O. Pin Holder
- 234 — 4th K.O. Pin Holder
- 235 — 5th K.O. Pin Holder
(2) Cut-Off System
- 303 — Cutter Holder
- 304 — Stop Pin
(3) Piercing System
- 504 — Piercing Lower Die Seat Screw
- 505 — Piercing Lower Die Holder
- 506 — Piercing Lower Die Seat
