Machining Lathe

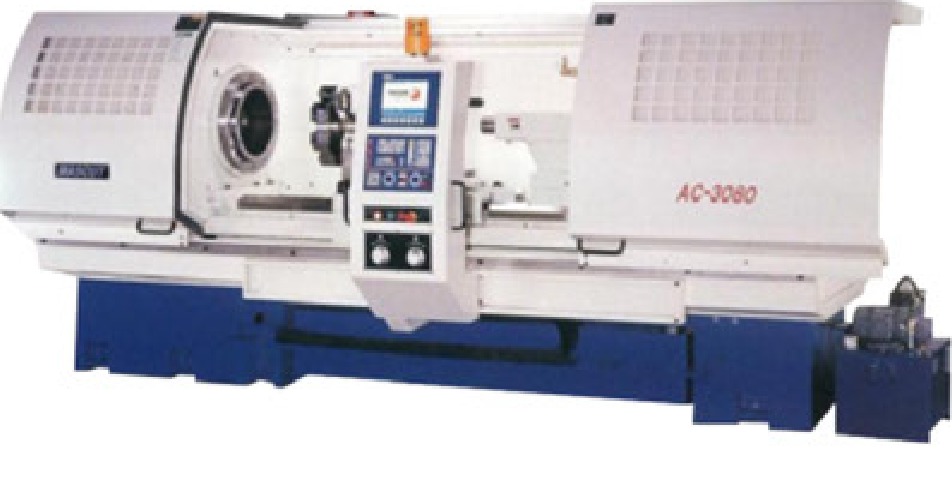

Machining Lathe is used for secondary processing in the fastener industry. These lathes from Taiwan provide precision machining capabilities including turning, drilling, tapping, and threading operations. CYC offers a wide range of machining lathes from leading Taiwan manufacturers, including Single Spindle Cam Type Automatic Lathes and CNC Lathes, suitable for various fastener production requirements.
Download Catalog (PDF)Machining Lathe Presented by CYC
Machining Lathe Specification
Following Machining Lathe Specification is only for your reference. For more information, please kindly download our catalog.

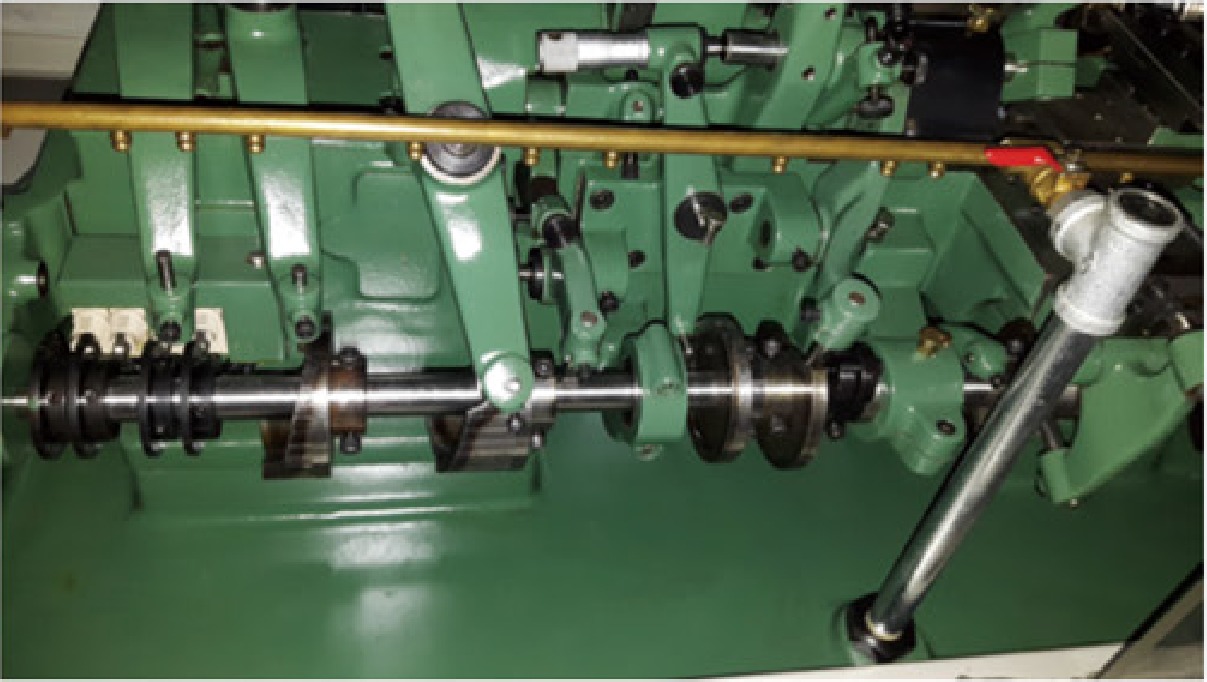

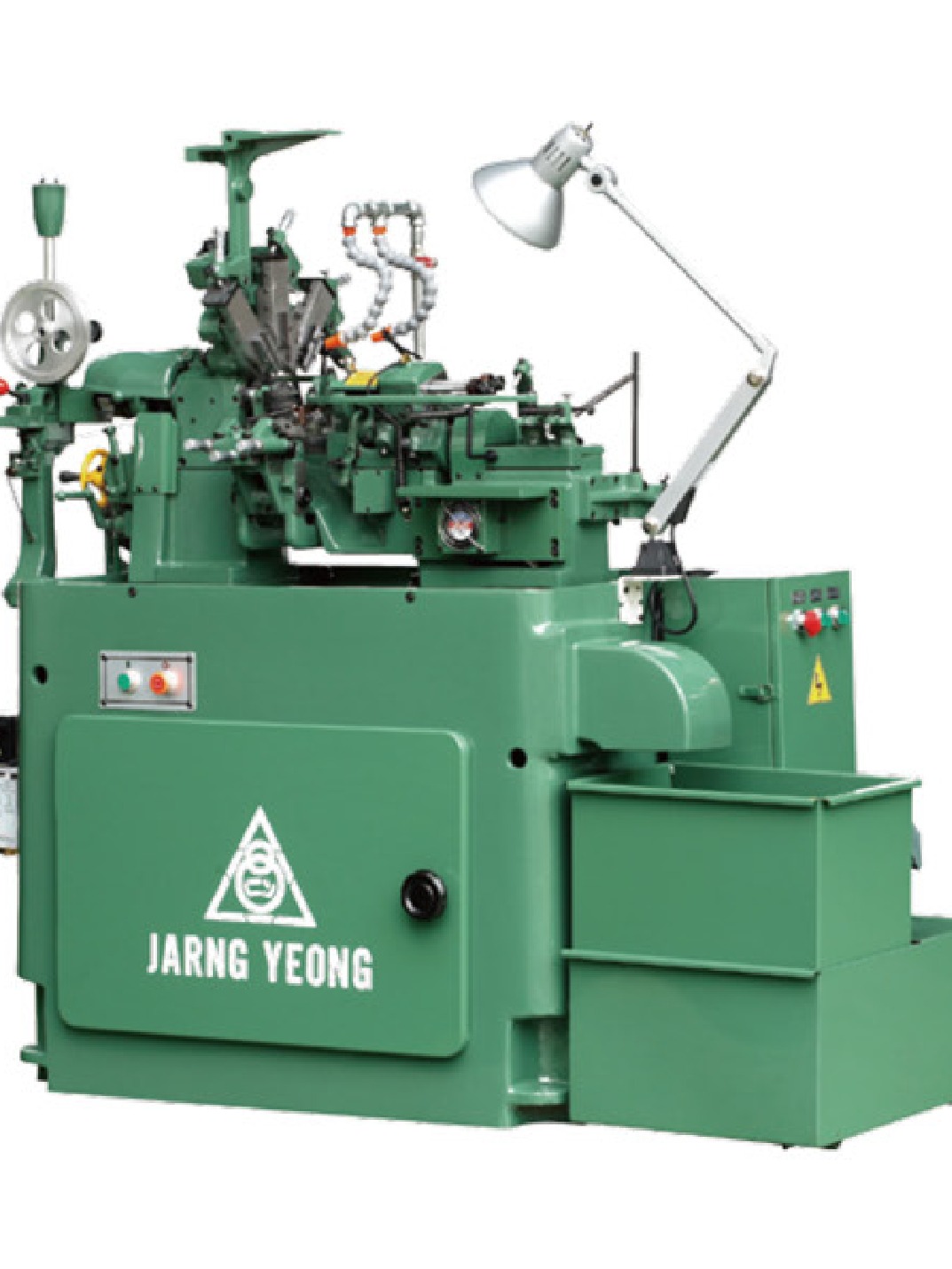

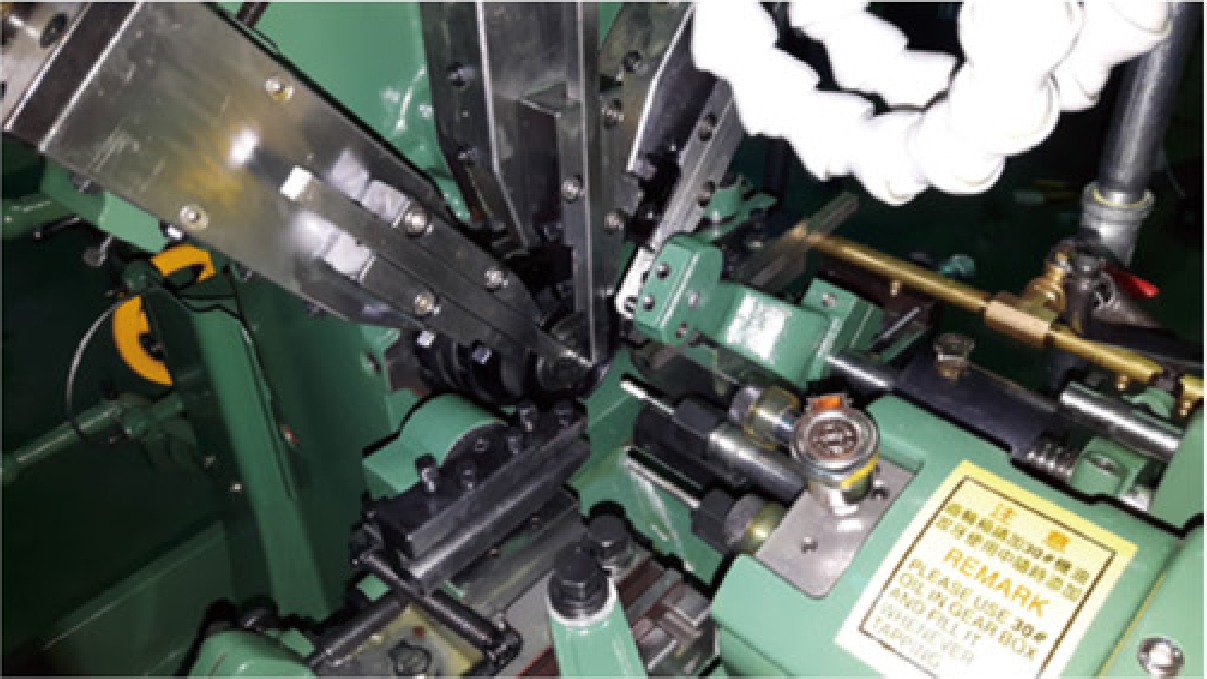

Single Spindle Cam Type Automatic Lathe (Jarng Yeong)
| Model | Number of Tool | Number of Tail-shaft | Max. Dia. of Processing (mm) | Max. Length of Processing for Tool No.1 (mm) | Max. Length of Processing for Tool No.5 (mm) | Max. Dia. of Drilling (mm) | Max. Dia. of Tapping (Free Cutting Steel) | Spindle Speed (r.p.m) | Conversion of Spindle Rotary Speed | Cam Shaft Speed (r.p.m) | Conversion of Cam Rotary Speed |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JY-105 | 5 | 1 | Ø 15 ⬡ 12 □ 10 |
30 | 30 | Ø8 | M5 | 2150-5870 | 5 | 1.9-25.8 | 15 |
| JY-1525 | 2370-7400 | 1.5-37.5 | |||||||||
| JY-2025 | 5 | 2 | Ø 20 ⬡ 16 □ 14 |
35 | 30 | Ø10 | M10 | 1830-6400 | 1.1-28 | ||
| JY-32H | Ø 32 ⬡ 27 □ 22 |
50-3000 | Variable Speed | Variable Speed | |||||||
| JY-42H | Ø 42 ⬡ 36 □ 28 |
75 | 50 | Ø20 | M20 |
