Vibrating Feeder

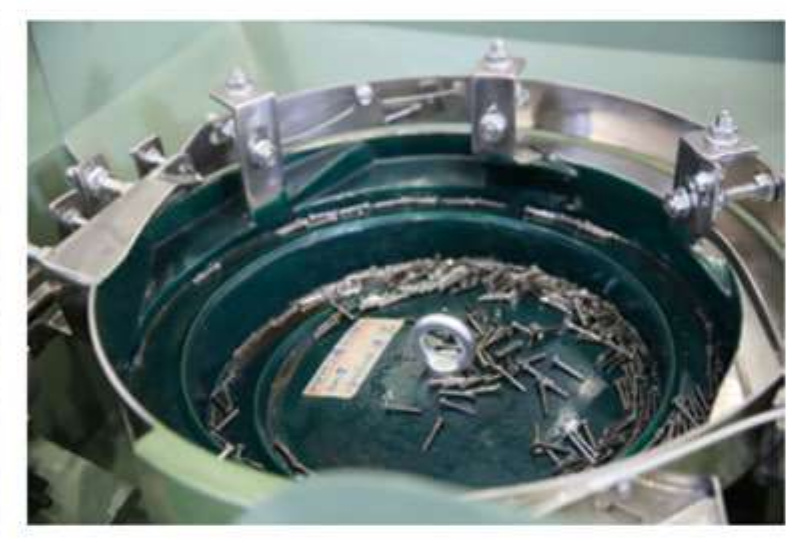

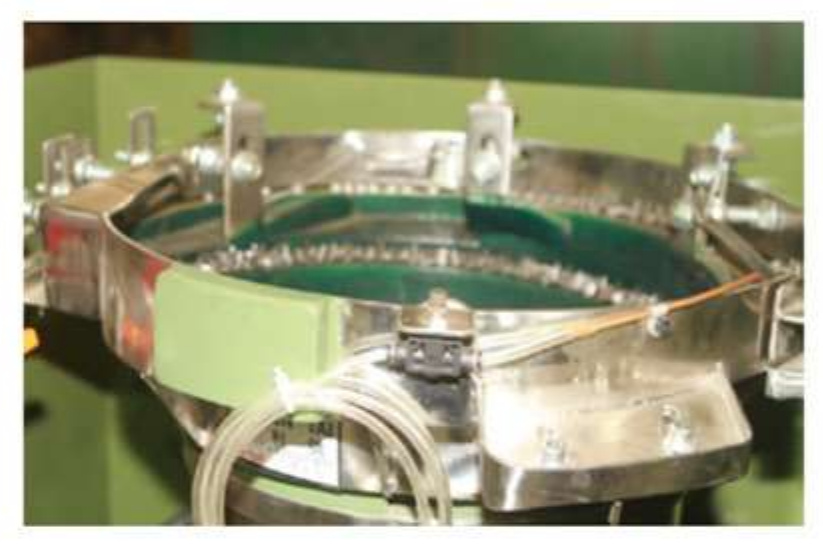

Vibrating Feeders automatically orient and feed fasteners into downstream production lines using vibratory bowl technology. CYC offers LY series and LS series vibrating feeders covering a wide range of fastener sizes for high-volume manufacturing.
Download Catalog (PDF)Vibrating Feeder Presented by CYC
Following Vibrating Feeder specification is only for your reference. For more information, please kindly download our catalog.

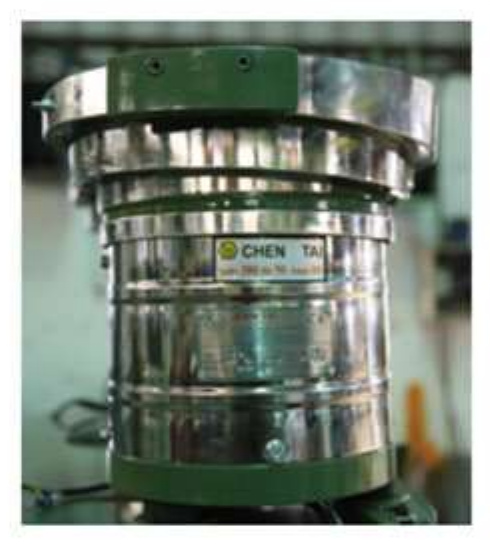

Vibrating Feeder - LY Series
| Model | Screw Outside Ø (mm) | Max. Screw Length (mm) | Outlet Length (mm) | Angle | Net Weight (kg) | Overall Size (L × W × H) (mm) |
|---|---|---|---|---|---|---|
| LYFW-200 | 1-3 | 15 | 180 | May depend on customer's request | 25 | 430×430×400 |
| LYFW-250 | 1-4 | 30 | 230 | 34 | 480×480×450 | |
| LY-300 | 2-5 | 30 | 315 | 37 | 530×530×500 | |
| LY-400 | 2-6 | 40 | 325 | 62 | 630×630×600 | |
| LY-520 | 2-8 | 75 | 415 | 114 | 750×750×700 | |
| LY-620 | 3-12 | 100 | 450 | 140 | 850×850×820 | |
| LY-720 | 5-16 | 125 | 470 | 240 | 950×950×920 | |
| LY-850 | 5-20 | 150 | 490 | 282 | 1080×1080×1050 | |
| LY-1000 | 5-25 | 200 | 510 | 460 | 1230×1230×1200 | |
| LY-1200 | 5-29 | 300 | 610 | 630 | 1430×1430×1400 | |
| LY-1500 | 5-30 | 400 | 640 | 1030 | 1730×1730×1700 |
Vibrating Feeder - LS Series
| Model | Max. Screw Ø (D1) (mm) | Screw Ø (D2) (mm) | Max. Screw Length (D3) (mm) | Net Weight (kg) | Overall Size (L × W × H) (mm) |
|---|---|---|---|---|---|
| LSFW-200 | 4 | 1-3 | 6 | 10 | 1130×430×400 |
| LSFW-250 | 5 | 1-4 | 6 | 15 | 480×480×450 |
| LS-300 | 6 | 2-5 | 8 | 30 | 530×530×500 |
| LS-400 | 10 | 2-6 | 12 | 52 | 630×630×600 |
| LS-520 | 16 | 2-8 | 18 | 109 | 730×730×700 |
| LS-620 | 25 | 3-12 | 27 | 130 | 850×850×820 |
| LS-720 | 30 | 5-16 | 32 | 228 | 950×950×920 |
