Self Drilling Screw Machine
Self Drilling Screw Machine forms the tail of the screw after the blank head is formed by the heading machine. The process is as follow. Then, Self Drilling Screw Machine will form the tail of the blank. After that, the work piece will be sent to thread rolling machine to make the thread and take off the additional material from the tail of self drilling screw.

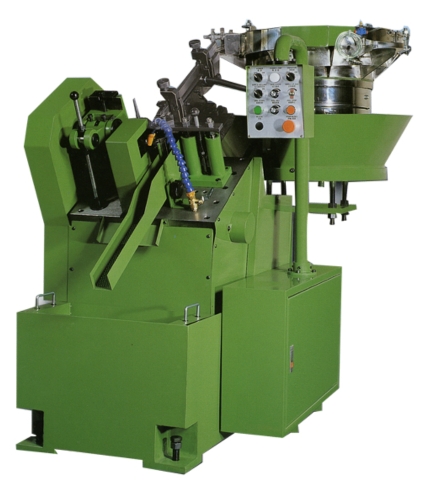

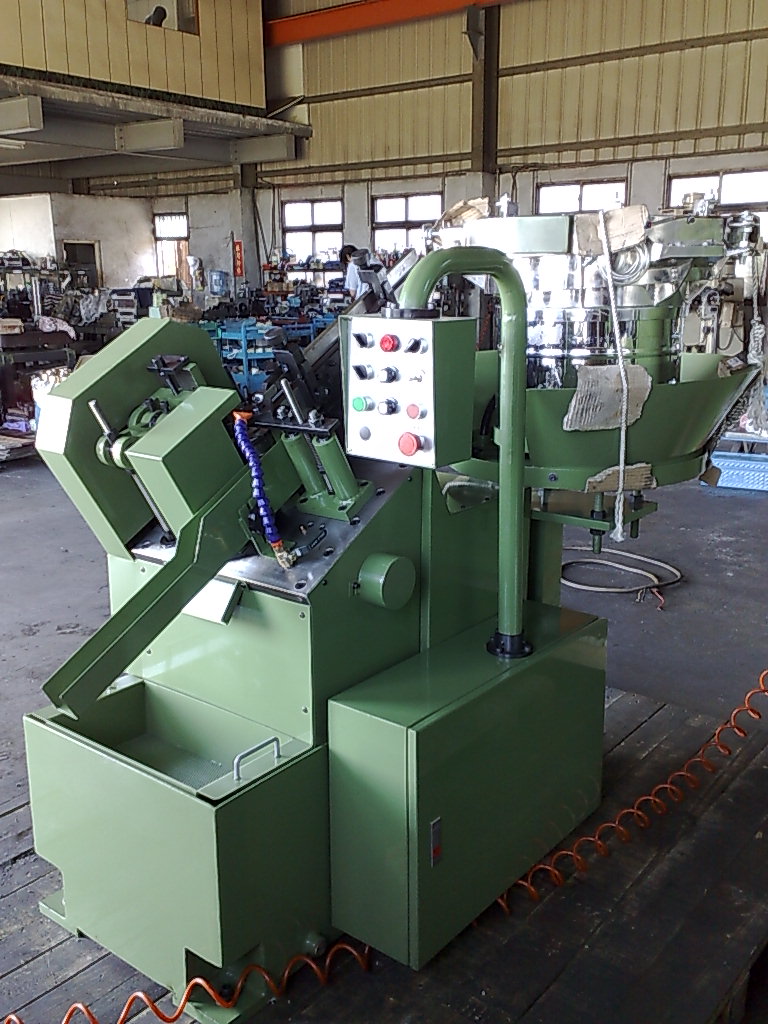

<Self Drilling Screw Machine Presented by CYC>
<Self Drilling Screw Machine Specification>
Following Self Drilling Screw Machine Specification is only for your reference. For more information, please kindly download our catalog.
ST-Self-Drilling Screw Forming Machine
| Model | Horsepower (HP) | Speed (r.p.m) | Production Ability | Dimension (L x W x H) (mm) | Machine Weight (kg) |
|---|---|---|---|---|---|
| ST-1405 | 10(Inverter) | 100-500 (Max: 600) |
Die: Ø 2.8-4.6 (#6 - #12) Length: 10-125 mm |
1900x1400x1600 | 2200 |
| ST-1606 | 15(Inverter) | 100-500 (Max: 600) |
Die: Ø 2.8-6.0 (#6 - #16) Length: 10-150 mm (MAX: 200) |
1900x1500x1800 | 2500 |
| ST-1808 | 15(Inverter) | 45-250 | Die: Ø 2.8-7.0 (#6 - #18) Length: 10-200 mm (Max. Length 370mm For special order) |
1850x1950x1850 | 3500 |
ST-Self-Drilling Screw Point Cutting Machine
| Model | Horsepower (HP) | Speed (r.p.m) | Production Ability | Dimension (L x W x H) (mm) | Machine Weight (kg) |
|---|---|---|---|---|---|
| ST-C100 | 3 | 120-480 | Die: Ø2.5 - 8.0 Length: 10 - 100 mm |
1700x800x1300 | 1000 |
ST-Slotting Machine(Unit: mm)
| Size Model | A | B | Range |
|---|---|---|---|
| 1 | 4.11 | 3 | Ø2.2 - 3.5 |
| 2 | 5.56 | 4 | Ø 2.8 - 5.1 |
| 3 | 7.8 | 4 | Ø4.0 - 6.5 |
| 4 | 10 | 6 | Ø4.5 - 9.0 |
| Dimension (L x W x H) | 1880x1520x1830 | Machine Weight | 1300kg |
