Mist Collector
Mist Collectors capture oil and coolant mist generated during machining operations to maintain clean factory air. CYC offers the JW-10 with multi-stage filtration designed for fastener machining environments.
Download Catalog (PDF)Mist Collector Presented by CYC
Features
- Special 1st stage filter designed to clear 1μ particles first. The rest are 4 stages filter to clean 0.3μ particles.
- Easy to replace 1st stage filters by hand and save time.
- Precise designed eccentric fan, suit for long time running & low noise.
- Strict design, easy operation & installation.
Specification

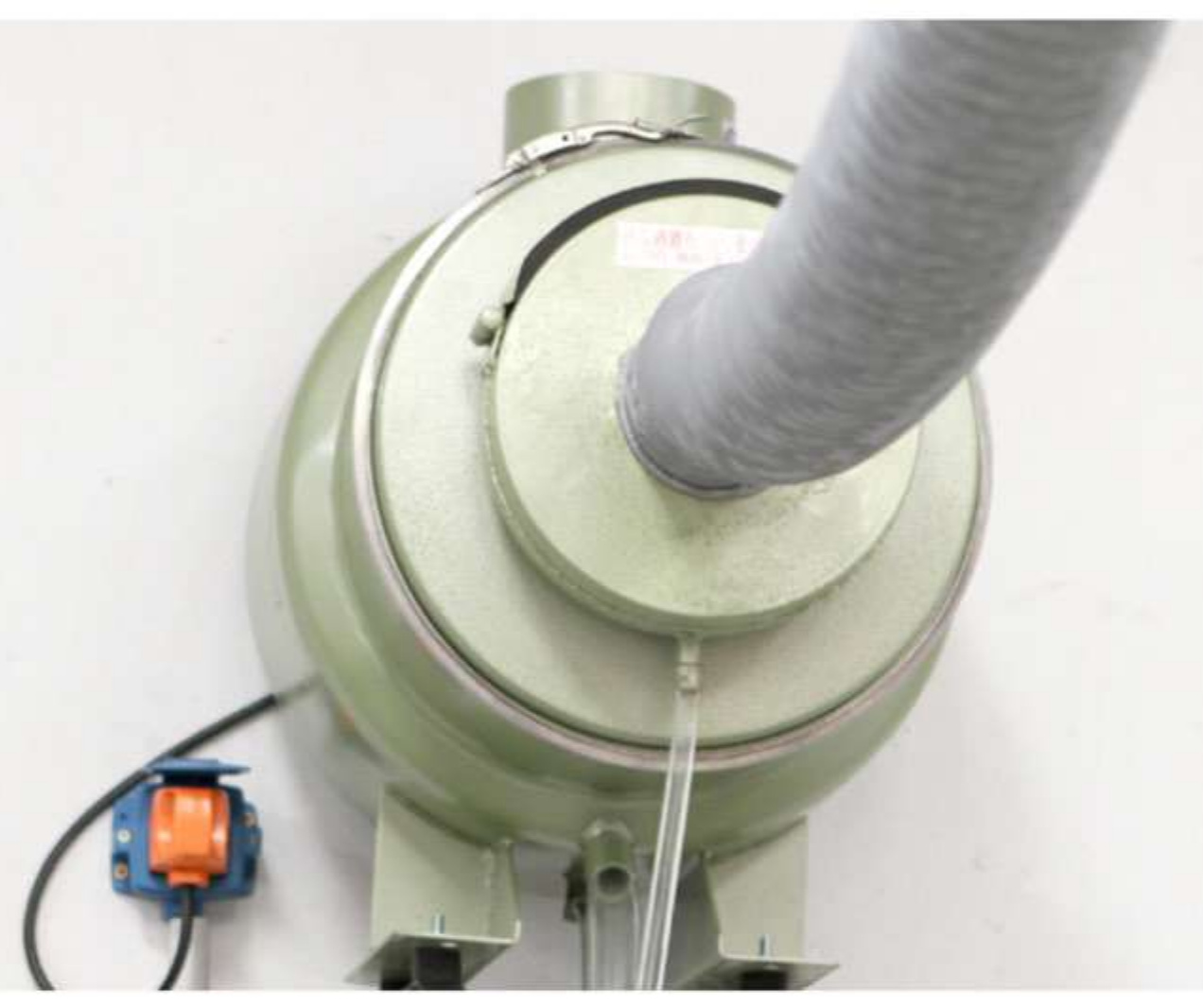

| Type | JW-10 |
|---|---|
| Hp | 0.75kw |
| Voltage | 380V×3×60(50)Hz / 220V×3×60(50)Hz |
| Suction Dia Ø | 150 m³/min T(100 m³/min) |
| Pressure | 200 mmAq |
| Dimension | 630×450×680 mm |
| Weight | 45 Kgs |
| Noise | 60 dBA |
