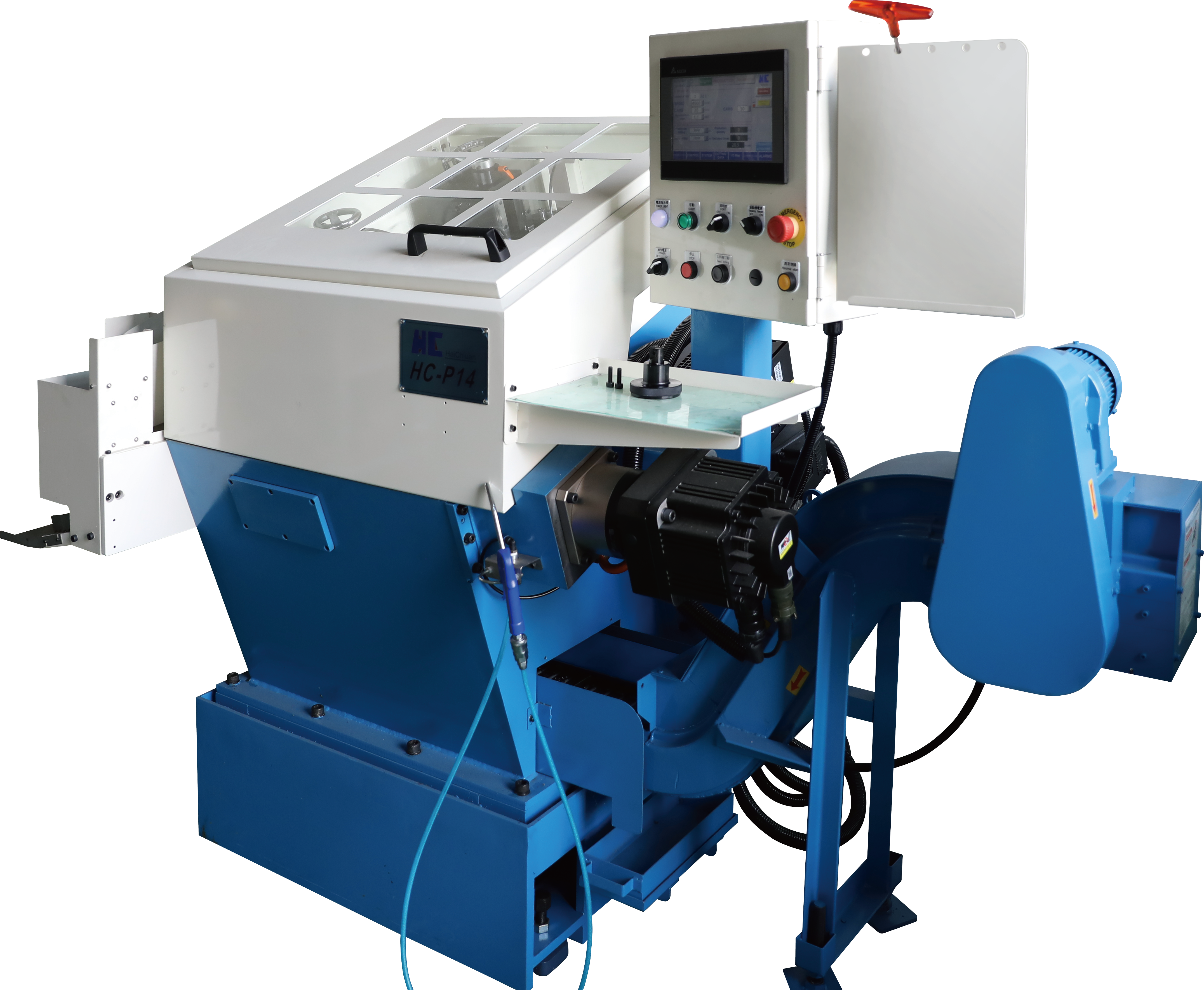

Bolt Chamfer Machine HC-P14
![Bolt chamfer Machine](../../assets/img/machinery/machine_tools/bolt_pointer_machine/1.png)
Often the industry either processes bolt point using lathes or has the points forming chamfers inside a die. However, the lathe method is very inefficient, and the drawback with the die method is with limited chamfer angles for point forming and reduced die life. Now, with HC-P14, which is developed by Hai-Chiuan Machinery(HC) and exclusively distributed by CYC, it can eliminate the drawback by increasing capacity, efficiency and flexibility.
The features include:
(1) Processing screws in 3-15mm diameters and 12-150mm lengths
(2) Coping with various special
bolt shapes
(3) Quick tool change
(4) Stable control powered by servomotors
(5) Much lower
price compared to European models
<Specification of Bolt Chamfer Machine>
![Bolt chamfer](../../assets/img/machinery/machine_tools/bolt_pointer_machine/2.png)
Standard Equipment | Specification | Remark |
---|---|---|
Machine Capacity | Ø3mm~Ø15mm∕ L:12mm~150mm |
![]() ![]() |
Production Speed (pcs/min) | 0~150 PIECES | |
Spindle Travel Axis/ Cutting Travel Axis |
15/5 (20/10) | |
Spindle Speed (rpm) | 1,000~6,000 | |
Spindle Motor(Servo) | 7.5HP (5.5KW) | |
Cutting Tool | Pointing, Chamfering and Facing Cutting Holder/Drilling Spindle Holder |
|
Standard Accessory | Vibrating Feeder | |
Chip Conveyor | Chain Type | |
Machine Size | L 230xW 2100xH 2050mm/ Weight (1800kg) |
<Feature of Bolt Chamfer Machine>
- Powered by Servo Motors for production stability

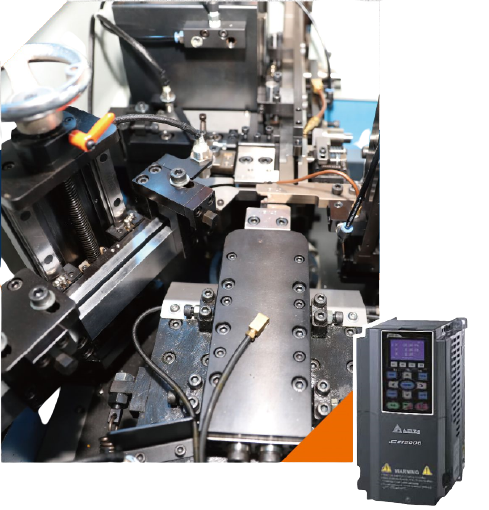

![Bolt chamfer Inverter Control](../../assets/img/machinery/machine_tools/bolt_pointer_machine/3.png)
Inverter Control VFD-CH2000 (Delta)
![Bolt chamfer Feeding Servo](../../assets/img/machinery/machine_tools/bolt_pointer_machine/4.png)
Feeding Servo 2.0KW (Delta)
![Bolt chamfer Jig Servo](../../assets/img/machinery/machine_tools/bolt_pointer_machine/4.png)
Jig Servo 2.0KW (Delta)
![Bolt chamfer Main Spindle AC](../../assets/img/machinery/machine_tools/bolt_pointer_machine/5.png)
Main Spindle AC Induction Servo Motor 5.5KW (FUKUTA)
- Bolt Chamfer Machine Quick Change Tools
- Jig Exchangeable:
-
- Modularization with Quick-Change Option
- Higher Accuracy
![Bolt chamfer Tools-Benchmark Mold](../../assets/img/machinery/machine_tools/bolt_pointer_machine/7.png)
Benchmark Mold
![Bolt chamfer Tools-Press Plate](../../assets/img/machinery/machine_tools/bolt_pointer_machine/8.png)
Press Plate
![Bolt chamfer Tools-Bolts Head Confine](../../assets/img/machinery/machine_tools/bolt_pointer_machine/9.png)
Bolts Head Confine
![Bolt chamfer Tools-Feeding Pusher](../../assets/img/machinery/machine_tools/bolt_pointer_machine/10.png)

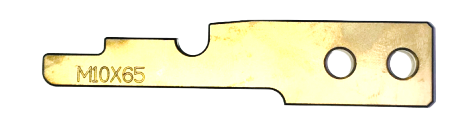

Feeding Pusher
![](../../assets/img/machinery/machine_tools/bolt_pointer_machine/6.png)
- Bolt Chamfer Machine Tool Set Variety

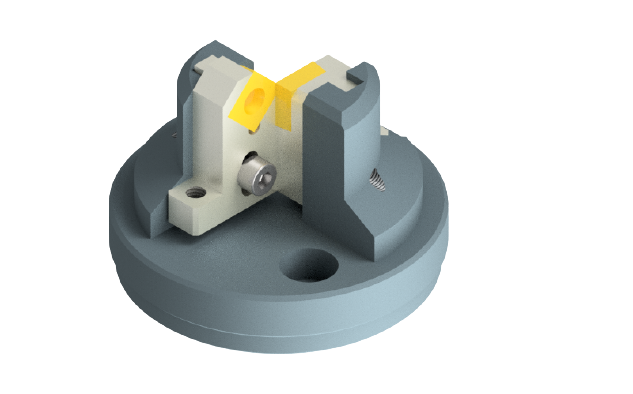

![Tool holder of Bolt chamfer machine](../../assets/img/machinery/machine_tools/bolt_pointer_machine/11.png)
Special tool holder for ISO inserts.Wide application for various type of bolts/screws end cutting requirements

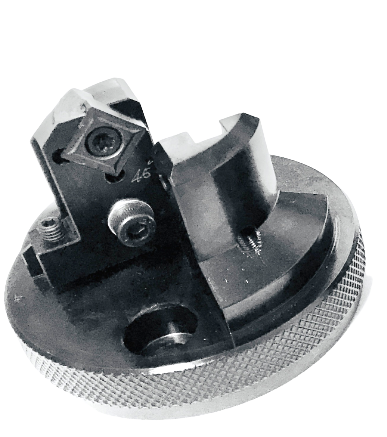

![Bolt chamfer machine of tool set for chamfering and facing](../../assets/img/machinery/machine_tools/bolt_pointer_machine/12.png)
![Bolt chamfer machine of tool set for chamfering and facing](../../assets/img/machinery/machine_tools/bolt_pointer_machine/13.png)

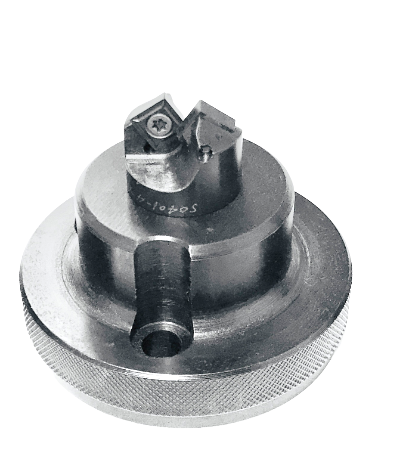

![Bolt chamfer machine of tool set for pointing](../../assets/img/machinery/machine_tools/bolt_pointer_machine/14.png)
![Bolt chamfer machine of tool set for pointing](../../assets/img/machinery/machine_tools/bolt_pointer_machine/15.png)

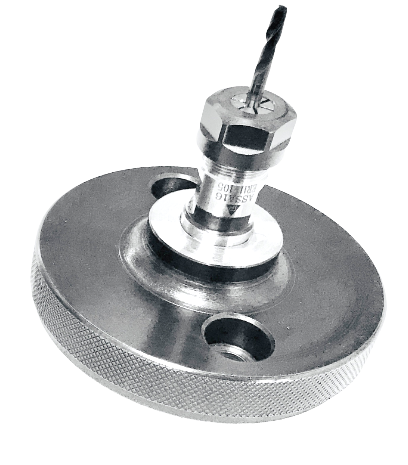

![Bolt chamfer machine of tool set for drilling](../../assets/img/machinery/machine_tools/bolt_pointer_machine/16.png)
![Bolt chamfer machine of tool set for drilling](../../assets/img/machinery/machine_tools/bolt_pointer_machine/17.png)

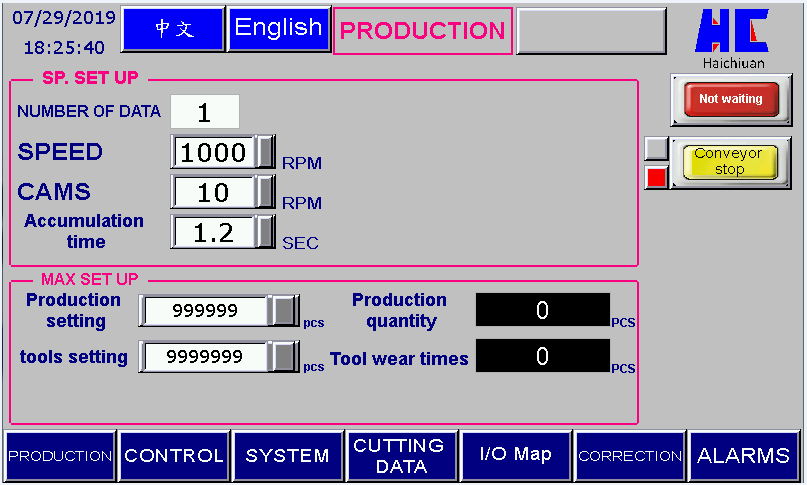

- 10.1” HMI Control
![10.1” HMI Control of Bolt chamfer machine](../../assets/img/machinery/machine_tools/bolt_pointer_machine/18.png)
![Production record of Bolt chamfer machine](../../assets/img/machinery/machine_tools/bolt_pointer_machine/19.png)
Complete Production Record.
Daily Production, Batch Production, Tool Life
records.
![Cutting process program of Bolt chamfer machine](../../assets/img/machinery/machine_tools/bolt_pointer_machine/20.png)
Cutting process programs can be stored in the database.
Easy recall for
different cutting process.
- Sychorinzed Lubrication System

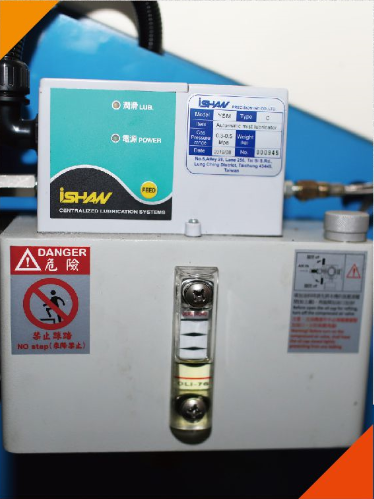

![Spindle Micro-Lubrication of Bolt chamfer machine](../../assets/img/machinery/machine_tools/bolt_pointer_machine/21.png)
<Spindle Micro-Lubrication>
Ensure high speed & longer spindle life.
![Auto Lubrication system of Bolt chamfer machine](../../assets/img/machinery/machine_tools/bolt_pointer_machine/22.png)

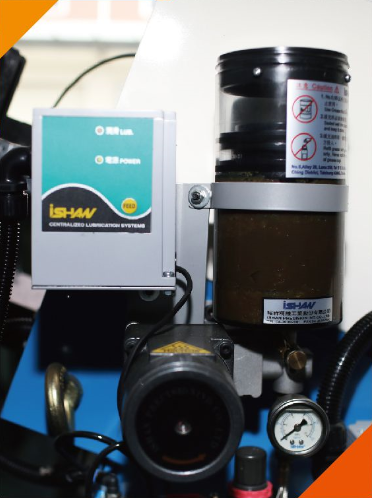

<Auto Lubrication System>
Programmable time operation.
![MQL of Bolt chamfer machine](../../assets/img/machinery/machine_tools/bolt_pointer_machine/23.png)

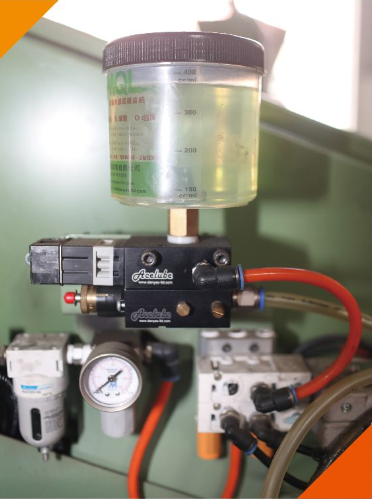

<MQL (OPTIONAL)>
- Reduce the cleaning process.
- High cooling & lubrication efficiency.
- Improves Tooling Life.

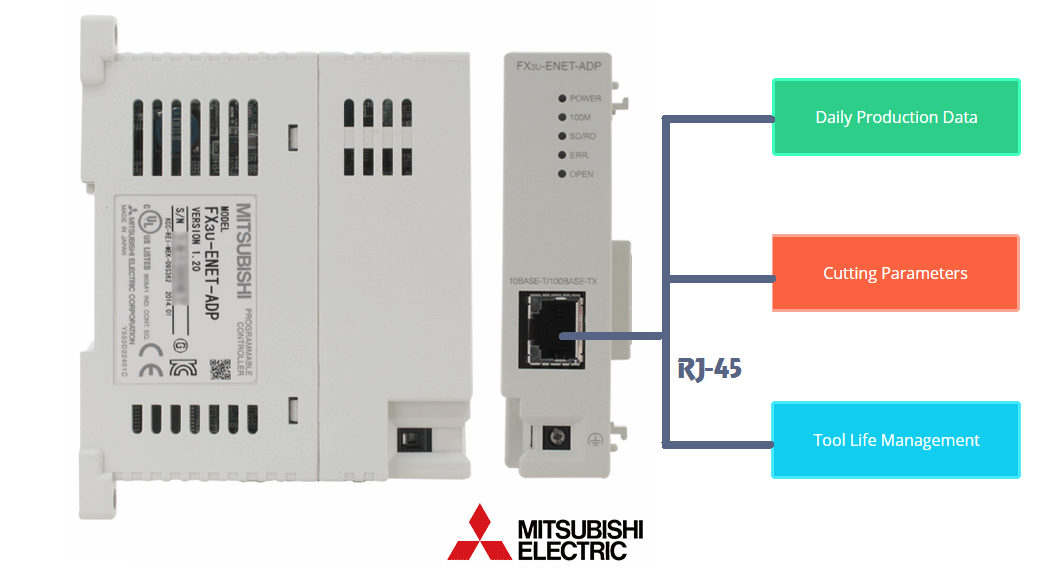

- LAN Output for Data Transfer
![LAN Output for Data Transfer of Bolt chamfer machine](../../assets/img/machinery/machine_tools/bolt_pointer_machine/24.png)

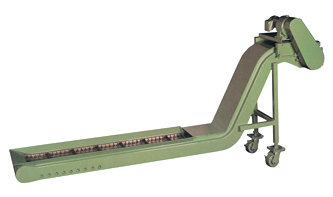

- Scrap Conveyor
![Scrap Conveyor, Chain Type Conveyor](../../assets/img/machinery/machine_tools/bolt_pointer_machine/25.png)
Chain Type Conveyor
Effective removal on small and
thin scraps
